Pair of Duracell DURDC12-80P 12V 80Ah AGM Deep Cycle Batteries that Replace UB12750 Batteries

Duracell 24V 80Ah Electric Wheelchair Batteries – Group 24

Duracell

$579.98
SKU:
DURDC12-80P-24V-SET
Availability:
Not Available
Voltage:
24V
Type:
AGM
Capacity:
80Ah
Group Size:
24
Terminals:
Nut & Bolt
Polarity:
+ Left / - Right
Deep Cycle:
Yes
Length:
10.0" - 10.9"
Width:
6.5" - 6.9"
Height:
8.0" - 8.4"
Weight:
50.2 lbs
Capacity Group:
50 - 100Ah
Height:
8.5" - 8.9"

Product Description

The Duracell DURDC12-80P 24V Battery Set is no longer available.

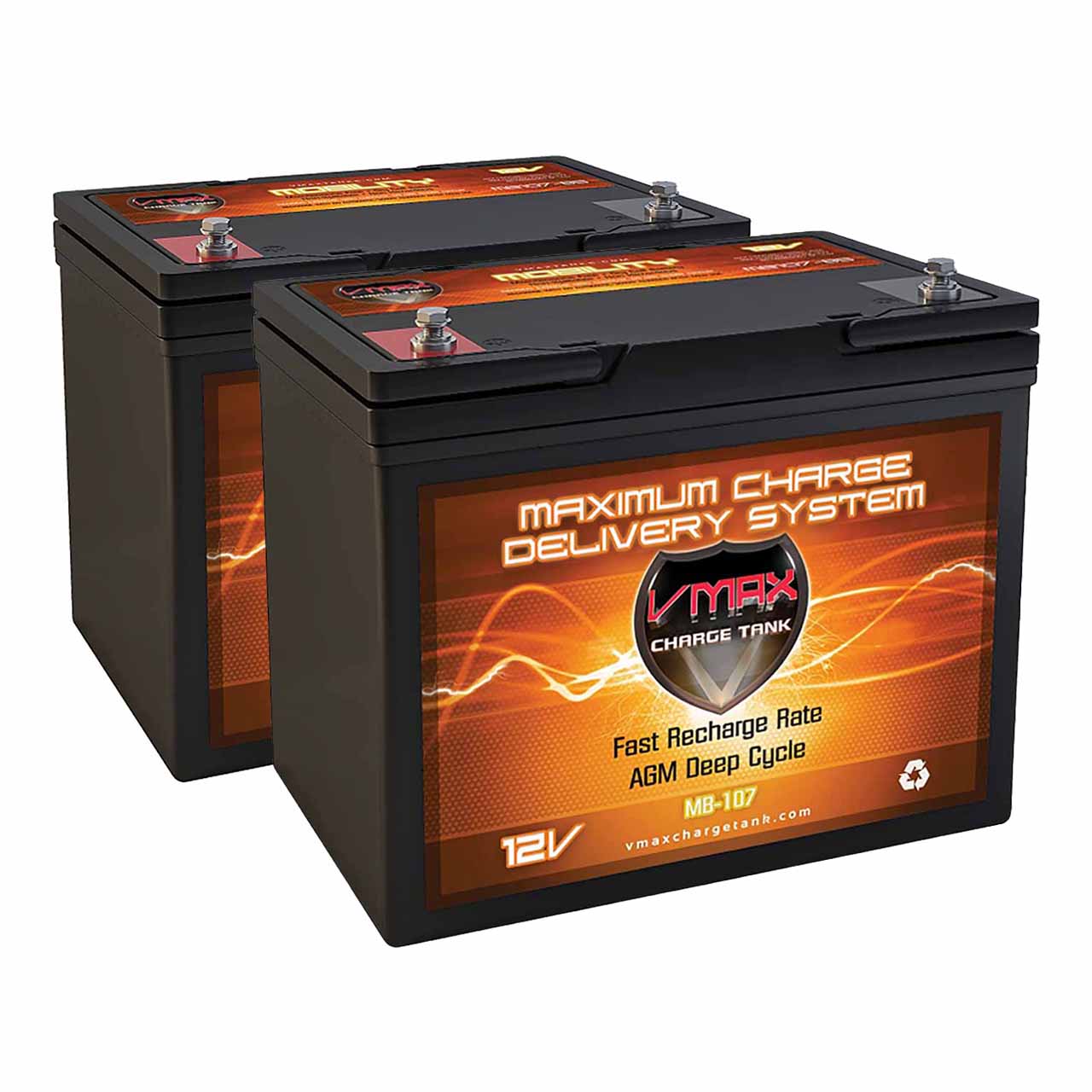

The VMAX MB107-85 batteries are direct-fit replacements for the DURDC12-80P with the same physical dimensions and bolt-style connections, but with slightly higher capacity. The MB107-85 also has internal design improvements that increase its amperage capabilities, making it an excellent upgrade over the DURDC12-80P in large mobility devices and similar applications that can benefit from stronger power delivery. Click the image to view details.

VMAX 24V Electric Wheelchair Battery Set – Group 24
VMAX 24V 85Ah Electric Wheelchair Battery Set – Group 24

Duracell 24V Wheelchair Batteries

This is a pair of Genuine Duracell Ultra DURDC12-80P 12V AGM batteries to be connected in series for 24V mobility devices and 24V equipment that require two Group 24 deep cycle batteries. Duracell’s deep-cycle AGM technology delivers reliable performance and longer battery lifespan in applications where frequent, deep discharges are required.

Features & Benefits

  • Deep-Cycle Durability – Designed for deep discharges with longer lifespan than standard batteries.
  • AGM Technology – Improved plate design for increased durability and extended lifespan.
  • 80Ah Capacity – High reserve for extended operation in high-demand systems.
  • Low Self-Discharge – Holds a charge longer between uses, so it's ready when you are.
  • Nut & Bolt Terminals – Direct-fit connections for wiring with ring terminals or eyelets.
  • Left-Positive Polarity – Verify your current battery’s terminal positions before purchase.
  • Easy Installation – Folding handles make battery replacements quick and easy.
  • Genuine Duracell – Legendary quality combined with deep cycle AGM dependability.
Duracell Ultra
DURDC12-80P Specs
Voltage 12V
Capacity 80 Ah
Type Deep Cycle AGM
Group Size 24
Terminals Nut & Bolt
P Terminals
Polarity + Left / - Right
Length 10.20" (259 mm)
Width 6.61" (168 mm)
Height 8.18" (209 mm)
8.98" (228 mm)
w/terminals
Weight 50.2 lbs (22.8 kg)
Warranty 1 Year


Note: Terminals will accept up to 8mm hardware. 6mm hardware is included.

Duracell DURDC12-80P Battery Cross-Reference

Replaces 12V 80Ah Batteries with Nut & Bolt Terminals: 45821, DURDC12-80P, PDC-12800, PS-12750 U, SCP12750 NB, SP12-75, UB12750, WKDC12-80P.

Extend the Life of Your Batteries

Keeping your batteries charged between uses is essential for maximizing their lifespan. For these batteries connected in series, we recommend the VMAX 24V 10A Wheelchair Battery Charger. This charger is equipped with a 3 Pin Male XLR connectors as a direct-fit replacement charger for many mobility devices.

24V Group 24 Battery Applications

Mobility – 24V Power Wheelchairs & Track Models
Equipment – 24V Lifts, Floor Scrubbers & Industrial Equipment
Off-Grid – 24V Solar Energy Storage Banks
Marine – 24V House Power Banks & Trolling Motors
