Product Description

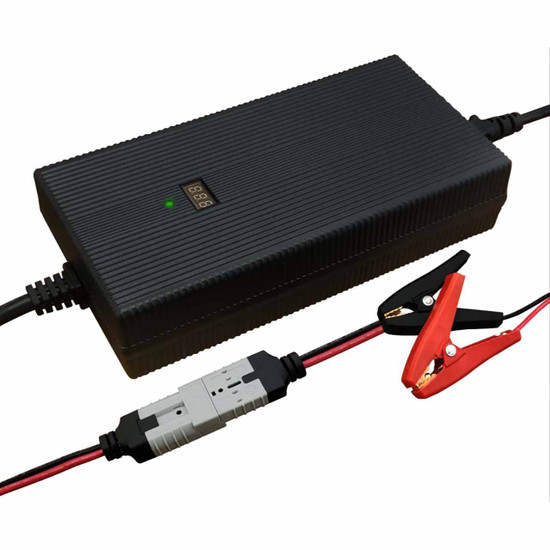

The VMAX 1230A 12V AGM battery charger is an automatic 3 stage battery charger/maintainer with a peak charge rate of 30 amps. Automatic charging protects your battery from being overcharged, so you can leave the charger connected to the battery indefinitely. The BC1230A charger is excellent for any 90Ah-500Ah AGM, GEL or SLA 12V battery. It can also be used as a 12V 30A power supply.
The 3 charging stages are:
- Bulk
- Absorption
- Float
Estimated Charging Time
90Ah ~ 1 hour
120Ah ~ 4 hours
300Ah ~ 10 hours
450Ah ~ 15 hours
| Input Voltage | 110-240VAC |
| Max Input Current | With Load: 5A No Load: 0.05A |
| Input Power | With Load: 440W No Load: 1.5W |
| Nominal Voltage | 12V |
| Bulk Charge Phase | 14.4V-14.8V, 30A |
| Absorption Charge Phase | 14.6V, 30A - 9A |
| Float Phase | 13.8V +/- 0.2V with Pulse Charging |
| Battery Type | AGM, SLA, Wet |
| Recommended Battery Capacity | 90-500Ah |
| Operating Temperature | -20°F - 115°F |
| Storage Temperature | -40°F - 165°F |
| Connector | Insulated Alligator Clamps |
| Charging Cord Length | 4ft |
| Dimensions | 10.5"x5.3"x2.6" (L x W x H) |
| Weight | 7 lbs |
