Product Description

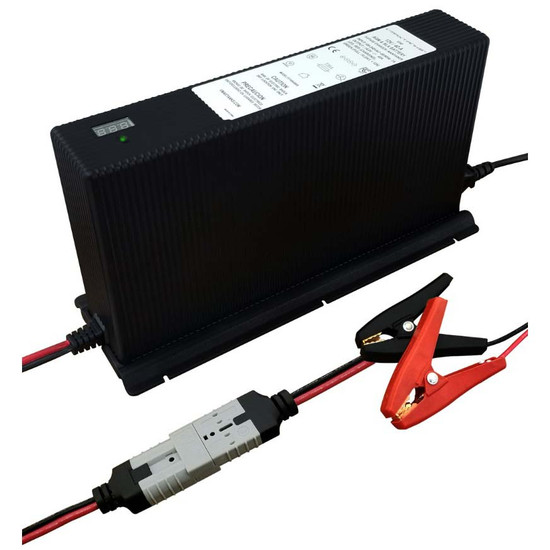

The VMAX 1240A 12V AGM battery charger is an automatic 3 stage battery charger/maintainer with a peak charge rate of 40 amps. Automatic charging protects your battery from being overcharged, so you can leave the charger connected to the battery indefinitely. The BC1240A charger is excellent for any 120Ah-600Ah AGM, GEL or SLA 12V battery. It can also be used as a 12V 40A power supply.
The 3 charging stages are:
- Bulk
- Absorption
- Float
Estimated Charging Time
120Ah ~ 1 hour
160Ah ~ 4 hours
400Ah ~ 10 hours
600Ah ~ 15 hours
| Input Voltage | 110-240VAC |
| Max Input Current | With Load: 7A No Load: 0.05A |
| Input Power | With Load: 584W No Load: 1.5W |
| Nominal Voltage | 12V |
| Bulk Charge Phase | 14.4V-14.8V, 40A |
| Absorption Charge Phase | 14.6V, 40A - 12A |
| Float Phase | 13.8V +/- 0.2V with Pulse Charging |
| Battery Type | AGM, SLA, Wet |
| Recommended Battery Capacity | 120-600Ah |
| Operating Temperature | -20°F - 115°F |
| Storage Temperature | -40°F - 165°F |
| Connector | Insulated Alligator Clamps |
| Charging Cord Length | 5ft |
| Dimensions | 13.2"x4.4"x7" (L x W x H) |
| Weight | 9 lbs |
