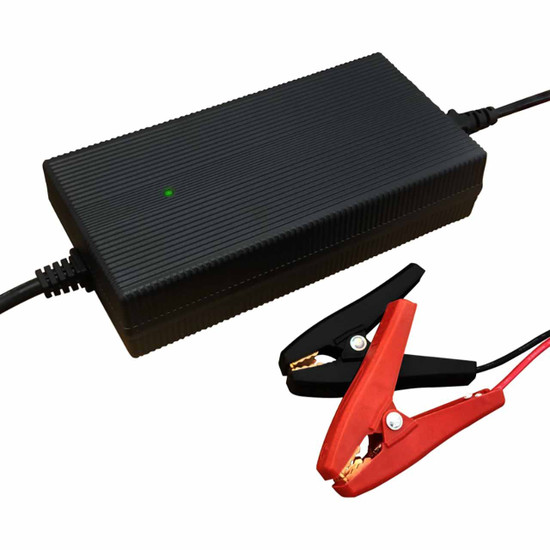

Product Description
The VMAX 2410LFP 24V Smart Lithium Battery Charger is an automatic 3 stage battery charger/maintainer with a peak charge rate of 10 amps. Automatic charging protects your battery from being overcharged, so you can leave the charger connected to the battery indefinitely. It can also be used as a 24 volt 20 amp power supply. The BC2410LFP is an excellent choice for 10-150Ah 24V lithium batteries.
The 3 stages are:
- Bulk
- Absorption
- Float
| Input Voltage | 110-240VAC |
| Max Input Current | With Load: 5A No Load: 0.05A |
| Input Power | With Load: 300W No Load: 1W |
| Nominal Voltage | 24V |
| Bulk Charge Phase | 29.0V-29.4V, 10A |
| Absorption Charge Phase | 29.2V, 10A - 1A |
| Float Phase | 29.2V with Pulse Charging |
| Battery Type | LiFePO4 |
| Recommended Battery Capacity | 10-150Ah |
| Operating Temperature | -20°F - 115°F (LiFePO4 batteries will not charge below 32°F) |
| Storage Temperature | -40°F - 165°F |
| Connector | Insulated Alligator Clamps |
| Charging Cord Length | 4ft |
| Dimensions | 8.2"x4.3"x1.9" (L x W x H) |
| Weight | 3.3 lbs |
