Product Description

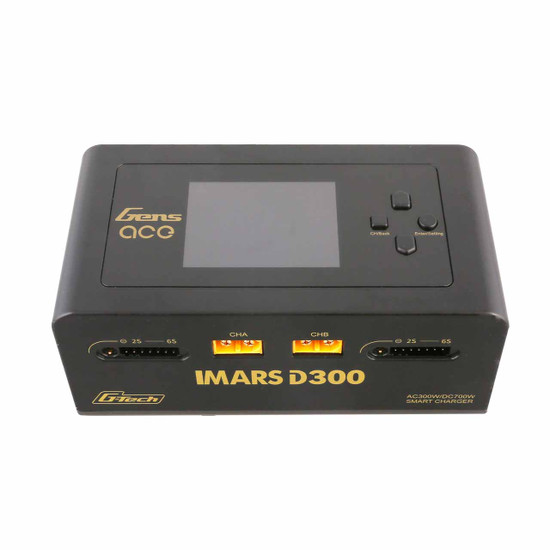

The IMARS D300 Charger is a versatile and intelligent charger that supports both charging and discharging. The IMARS D300 Charger is designed specifically for the G-Tech smart battery, but is also compatible with non-smart batteries.
When a G-Tech smart battery is connected to the Imars D300 charger, the charger will automatically identify the battery type & voltage through the smart balance connector, and charging current recommended by the battery manufacturer. For non-smart batteries, it is necessary to manually select the battery type and the required working mode to get started.
The IMARS D300 Charger offers a range of features, including dual channel AC/DC smart balance charging, a small and lightweight portable design, a wide-view IPS display, and high power charging.
The charger has seven operating modes: charge, discharge, balance, storage, ExtDischarge, SyncCharging, and digital power supply. Offers simple to use operation.
Features:
- Dual Channel AC/DC Smart Balance Charger.
- Small & Lightweight Portable Design with wide-view IPS Display.
- High power charging, capable of Max 16 amp charge rates for one channel, worldwide 100V-240V voltage versatility, AC 300 Watts, DC 700 Watts.
- External discharge feature available.
- Synchronous output, 2-in-1 Fast-charging.
- Built-in DC power source for different devices.
- Controlled heat dissipation system.
- Advanced safety features, UL94-V0 Flame Retardant Grade.
- Protection of Short circuit / Over current / Overcharge / Over voltage.
- Support Gens Ace G-Tech smart charging.
- Also available in White.
Specifications:
- Input Voltage: AC 100-240V; DC 7-30V
- Output Voltage: DC 1-30V
- Max. Input Current: DC 34A
- Max. Discharging Power: 15W*2
- Maximum Charging Power: AC 300W; DC 350W*2
- Charge Current: 0.1-16A*2
- Discharge Current: 0.1-3A*2
- Cell Balancing: 1-6s
- USB Output: 5V / 2.4A
- Display Type: 2.4 inch IPS LCD Display
- Supported Battery Chemistry: LiPo / LiHV / LiFe 1-6S; NiMH 1-16S
- Dimensions: 145x76x62 mm
- Weight: 530g
- Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
