Product Description

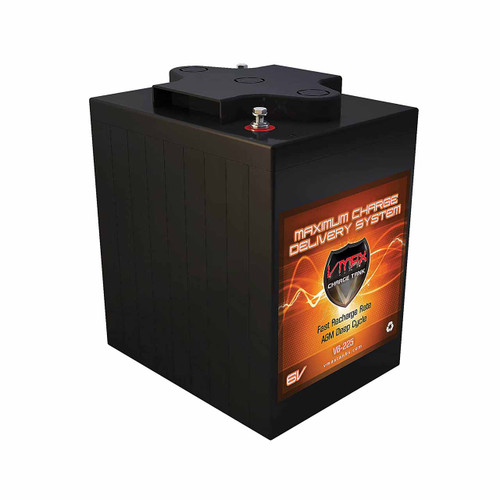

225Ah 6V Deep Cycle RV Battery
The VMAX V6-225 is a heavy duty AGM 6V deep cycle battery with a 225Ah capacity for RV's and high capacity off-grid energy storage needs. Its popular Group GC2 dimensions make it a great choice for large battery banks, as well as a direct-fit replacement in many recreational vehicles. AGM construction provides sealed, maintenance-free operation with steady output under heavy inverter loads. VMAX batteries are known for their top grade plates and plate separators to provide superior performance and long life deep cycle capabilities.
Features & Benefits
- AGM Construction – Heavy-duty plates with Absorbed Glass Mat separators for longer lifespan.
- Deep Cycle Durability – Built to withstand deep discharge cycles in RV's and energy storage applications.
- 6 Volt AGM Versatility – Ideal for building series/parallel banks for high capacity and higher-voltage systems.
- Group GC2 Compatibility – Designed to fit common GC2 style battery compartments and bank layouts.
- Valve Regulated Design – Maintenance-free operation with no watering or spill concerns versus flooded batteries.
- Stable Power Delivery – Provides consistent voltage under high loads from RV accessories & inverters.
- Solid Construction – Strong ABS case and AGM construction helps handle rough RV and marine environments.
- Ultra Low Resistance – VMAX batteries' ultra low resistance makes them up to 99% efficient.
- Temperature Tolerant – Dependable power over a wide range of ambient temperatures.
- Low Self-Discharge – Maintains a charge longer between uses than flooded batteries.
Why Choose the VMAX V6-225?
Whether you're replacing worn-out GC2 batteries or building a new battery bank from scratch, the V6-225 gives you a stable foundation with high capacity, deep-cycle durability, and the low-hassle ownership of AGM batteries. This Group GC2 AGM battery with deep discharge capabilities and 225Ah capacity is a great option for numerous energy storage applications where power is needed for extended periods of time.
V6-225
VMAX V6-225 Specifications
6 Volt 225Ah Deep Cycle AGM Battery
- Nominal Voltage 6V
- Capacity 225Ah
- Terminals M8 Inserts
- Chemistry Deep Cycle AGM
| Electrical & Performance | |
|---|---|
| Chemistry | Deep Cycle AGM |
| Nominal Voltage | 6 Volts |
| Capacity | 225Ah |
| Dimensions & Fitment | |
| Group Size | GC2 |
| Length | 9.5" (241 mm) |
| Width | 7.3" (185 mm) |
| Height | 11.0" (279 mm) |
| Terminals | M8 Inserts (hardware incl.) |
| Weight | 72 lbs (32.7 kg) |
| Charging & Warranty | |
| Charging Current | 15 - 55 Amps |
| Charging Voltage | 7.2V - 7.35V |
| Float Voltage | 6.6V - 6.9V |
| Warranty | 1 Year |
Charging Note: Use a 6V AGM-compatible charger at 7.2V–7.35V (float 6.8V–6.9V). Do not use flooded-battery charge profiles on this battery.
VMAX V6-225 DatasheetBulk Pricing on VMAX V6-225 Batteries + Free Shipping
View DetailsHide Details2-3 — $6.00 Off Each
4-9 — $12.00 Off Each
10+ — $18.00 Off Each
Discounts automatically applied in shopping cart.
VMAX V6-225 Battery Cross-Reference
View DetailsHide Details6 Volt Group GC2 Batteries: 0400067, 0400215, 6CRV220, 70013987, 76502 (GT/GN), 8AGC2, 8GGC2, 8143, 8144, 8146, CBEV-GC2-DT, CR-205, CR-220, CR-235, CR-240, CR-245, DC224-6, DC250-6, E3600, EGC2, EV125, G110-12, GC-100, GC-110, GC10, GC100, GC110, GC110DT, GC115, GC15, GC2, GC2-110, GC2-6V, GC2-6V-HD, GC2-6V-XHD, GC2-ECL-S, GC2-ECL-UT, GC2-ECL-UTL, GC2-GOLF, GC2-HCL-UT, GC2-HCL-UTL, GC2-HD-AGM, GC2HC-UTL, GC2200P, GC25, GC45, GN1299390GT, GN76502, HPGC, LDC6-210-GC2, M-GC2-UTL, PF-GC2-UTL, SLIGC110, SLIGC115, SLIGC125, SLIGC145UT, SLIGC2-105, SLIGC6VAGM, T-105, T105+, T-125, T-125+, T-605, UP015796-000, US 125 XC2, US 145 XC2, US 1800 XC2, US 2000 XC2, US 2200 XC2, US AGM 2000, US AGM 2224, US AGM 6V260, V6-225, XTR6-235, XTR6-235M.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
