Product Description

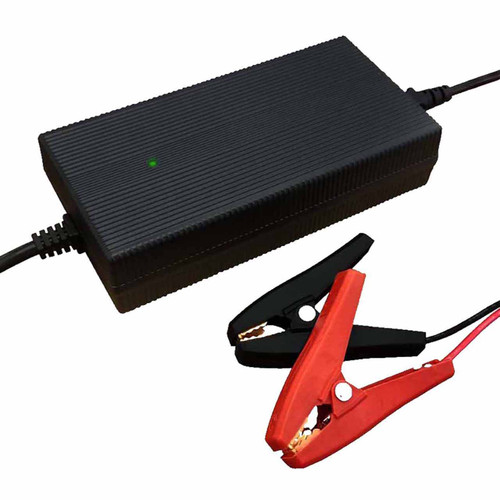

The VMAX 1215LFP 12V Smart Lithium Battery Charger is an automatic 3 stage battery charger/maintainer with a peak charge rate of 15 amps. Automatic charging protects your battery from being overcharged, so you can leave the charger connected to the battery indefinitely. It can also be used as a 15 amp power supply. The BC1215LFP is an excellent choice for 15-225Ah 12V lithium batteries.
The 3 charging stages are:
- Bulk
- Absorption
- Float
Estimated Charging Time
15Ah ~ 1 hour
60Ah ~ 4 hours
150Ah ~ 10 hours
225Ah ~ 15 hours
| Input Voltage | 110-240VAC |
| Max Input Current | With Load: 3A; No Load: 0.05A |
| Input Power | With Load: 219W; No Load: 1W |
| Nominal Voltage | 12V |
| Bulk Charge Phase | 14.4V-14.8V, 15A |
| Absorption Charge Phase | 14.6V, 15A - 1.5A |
| Float Phase | 14.6V with Pulse Charging |
| Battery Type | LiFePO4 |
| Recommended Battery Capacity | 15-225Ah |
| Operating Temperature | -20°F - 115°F (LiFePO4 batteries will not charge below 32°F) |
| Storage Temperature | -40°F - 165°F |
| Connector | Insulated Alligator Clamps |
| Charging Cord Length | 4ft |
| Dimensions | 8.3"x4.3"x1.9" (LxWxH) |
| Weight | 3.3 lbs |
