Product Description
Heated Trolling Motor Batteries with Bluetooth

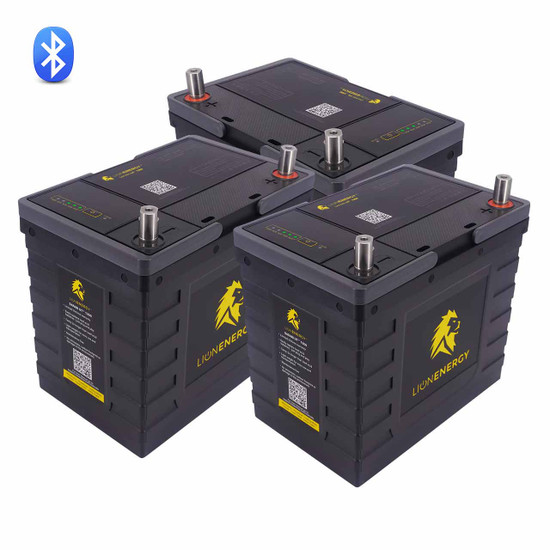

The Lion Energy 36V 105Ah Lithium Trolling Motor Battery Set includes three UT 1300 BT-H 12V 105Ah LiFePO4 batteries to be connected in series for 36V trolling motors. Integrated Bluetooth battery monitoring and a light 26 pounds each, makes this a perfect drop-in lithium upgrade over heavier AGM or flooded Group 24 batteries. Designed with an internal self-heating system for safe cold weather charging, plus a built-in Battery Management System (BMS) for internal protections that ensure a long service life. Compact and light weight, plus Bluetooth monitoring and self-heating capabilities, make this a user friendly and versatile lithium upgrade.
Features & Benefits
- 105Ah Capacity – Long run times for large trolling motors with 100% usable capacity.
- Bluetooth Monitoring – Track battery status and energy usage in the Lion Energy App.
- Compact & Lightweight – Group 24 and under 26 lbs each—easy handling and installation.
- Advanced BMS Protection – Over/under-voltage, over-current, and temperature protections.
- Limited Lifetime Warranty – Peace-of-mind longevity backed by Lion Energy.
Why Choose the Lion 36V Trolling Motor Battery Set?
Lion Energy Safari UT 1300 series batteries are well known for their high-quality LiFePO4 chemistry, smart monitoring, and exceptional cycle life. This 36V battery set outperforms traditional lead-acid batteries by offering twice the usable energy, faster charging, and longer lifespan, while dropping significant weight.
The built-in Bluetooth connectivity delivers real-time insights while the advanced BMS provides safe operation, ideal for extended fishing trips. Couple these features with a limited lifetime warranty and you have the perfect 36V lithium trolling motor battery upgrade for those seeking high performance and long-term value.
Lion Energy Smart App
- Monitor your trolling motor batteries from your phone.
- See current capacity levels as well as real time incoming and outgoing energy usage.
| Voltage | 12.8 Volts |
| Capacity | 105Ah / 1344Wh |
| Type | Lithium (LiFePO4) |
| Max. Discharge | 150 Amps |
| Group Size | 24 |
| Length | 10.20" (259 mm) |
| Width | 6.60" (168 mm) |
| Height | 8.80" (224 mm) 9.80" (249 mm) w/terminals |
| Terminals | M6 Inserts |
| Polarity | - Left / + Right |
| Weight | 25.5 lbs |
| Charging Current | 100 Amps Max |
| Charging Voltage | 13.9V - 14.6V |
| Low Voltage Cut-Off | 10 Volts |
| Operating Temperature | -4°F - 131°F |
| Heater On (Powered By Charger) |
32°F (0°C) |
| Series Connections | Up to 4 (48V) |
| Parallel Connections | Up to 4 (420Ah) |
| Design Life | 3,500+ cycles @ 100% DOD |
| Certifications | IP65 |
| Warranty | Limited Lifetime |
Lion Energy UT 1300 BT-H Manual
Lion Energy UT 1300 BT-H Datasheet
Lion Energy UT 1300 BT-H Battery Cross-Reference
Group 24 Lead-Acid Batteries: 24DC-1, 24DC-2, 24M5, 24TMX-WNT, 8A24M, 8G24M, CBEV-24-M8, CT2000, DURA12-80C/FR, LFP1280A (AGM), LFP1280D (AGM), M24-3, MB107-85, MR107-85, PDC-12800 M6, PS-12750 M6, SLA12-80P, SLI24MAGMDC, SLR85, UB12750.
Group 24 12V Lithium Batteries: 50170143, 50170173, 50170210, ADVENTURE BT, ALPHA 1, ALPHA 1 LITE, ALPHA 1 PRO, DL12-60, DL12-100, LFP1280MH, PP12-100, RS-B12100, RS-B121S, RS-B121SP, SLIL24-100DCM, UT 1300 BT, UT 1300 BT-H.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
Warning: LiFePO4 charger required if upgrading from non-lithium batteries.
Recommended Chargers for the Lion UT1300 36V Battery Set
VMAX 36V 20A Lithium Battery Charger & Maintainer
Battery Tender 36V 18A Lithium Battery Charger & Maintainer
NOCO 3-Bank 30A Marine Battery Charger & Maintainer
