Product Description

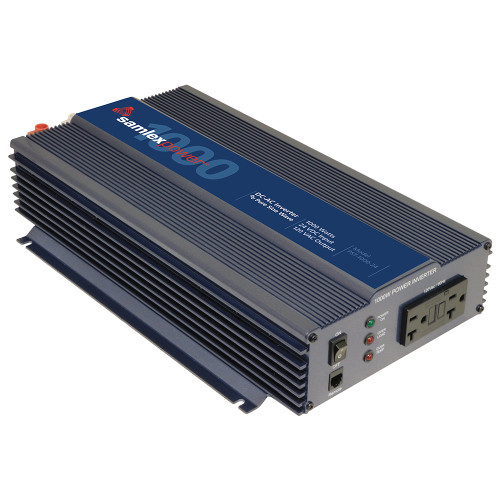

Samlex 24V 1000W Pure Sine Inverter
The Samlex PST-1000-24 is a 1000 watt pure sine wave inverter that converts 24 VDC to 120 VAC at 60 Hz for utility grade, clean, reliable power. Built for commercial-grade performance, it handles heavy-duty loads, continuous operation and emergency backup in RVs, boats, service vehicles and solar systems. Dual GFCI-protected outlets, wide 10.7–16.5 VDC input range and temperature-controlled cooling deliver efficient, quiet operation with advanced battery protection.
Features & Benefits
- Pure Sine Wave Output – Clean AC power with less than 3% total harmonic distortion for sensitive electronics.
- Protected Outlets – Two GFCI outlets that protect against ground faults for safer operation in wet environments.
- Temperature Controlled Cooling Fan – Activates only when needed to reduce energy use and noise.
- Wide Input Range – Accepts 10.7–16.5V so the inverter continues working reliably as battery voltage fluctuates.
- Universal Protection Circuit – Safeguards against low/high voltage, overload, short circuit and over temperature.
Applications
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
Specifications
- Input: 24 VDC
- Output: 120 VAC
- Watts: 1000
- Surge: 2000 Watts
- Outlet Qty: 2 Duplex GFCI
- Waveform: Pure Sine Wave
- Remote Control: RC-15A (sold separately)
- Weight: 8.8 (lbs)
- Weight: 4.0 (kg)
- Dimensions: 9.37 x 15.63 x 3.23 (in)
- Dimensions: 238 x 397 x 82 (mm)
- Safety: ETL to UL Standard
- Warranty: 2 Year Limited
- UPC: 622988072185
PST Series Features
PST-1000-24 Datasheet
PST-1000-24 User Manual
