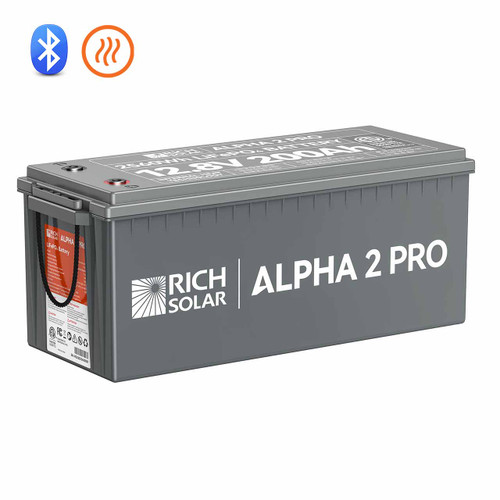

Rich Solar Alpha 2 Pro 12V 200Ah Group 4D Heated Lithium Battery with Bluetooth

Rich Solar

MSRP: $1,199.99
$959.99
(Save $240.00)
SKU:
RS-B122SP
Shipping:
Free Shipping
Voltage:
12V
Type:
Lithium
Capacity:
200Ah
Group Size:
4D
Terminals:
M8 Inserts
Capacity Group:
100 - 200Ah
Deep Cycle:
Yes
Self-Heated:
Yes
Bluetooth:
Yes
Length:
20" - 21"
Width:
8.0" - 8.9"
Height:
8.5" - 8.9"
Weight:
48.5 lbs
Capacity Group:
200Ah+
Dual Purpose:
No
Sub-Category:
Batteries
In Stock
Adding to cart… The item has been added

Product Description

12V 200Ah LiFePO4 Battery

The Rich Solar Alpha 2 Pro 12V 200Ah LiFePO4 Battery powers your RV, van, boat, or off-grid lifestyle with reliable high-capacity energy. Built using premium A+ grade LiFePO4 cells, it delivers 2,560Wh of usable power and an exceptional 7,000+ cycle life that vastly outlasts traditional lead-acid batteries. This Group 4D battery features Bluetooth connectivity for effortless monitoring and control through the Rich Solar app, plus automatic internal heating that ensures safe charging in cold weather. A strong 200 amp discharge capability and comprehensive protection from the built-in BMS gives you both dependable performance and peace of mind. The Alpha 2 Pro has been rigorously tested to meet stringent standards and is UL 1973 certified for commercial use in critical systems.

Features & Benefits

  • Premium A+ Grade Cells – Powered by EV-grade LiFePO4 cells for reliable power over thousands of cycles.
  • 200Ah Capacity – Longer run times for trolling motors, RV house loads, off-grid systems, and back up power.
  • Advanced BMS – Protection from over/under voltage, over-current, short circuits, and temperature extremes.
  • Bluetooth Monitoring – View real-time data for charge, voltage, current, and temperature from your smartphone.
  • Automatic Internal Heating – Activates below 41°F to enable safe charging in cold temperatures.
  • High Discharge Capability – Supports inverters and DC loads up to 200 continuous amps.
  • Fast, Efficient Charging – Optimized for LiFePO4 smart chargers and solar charge controllers.
  • Scalable Design – Wire up to 4 in parallel (up to 800Ah). Series connections are NOT permitted.
  • Light Weight – Easier handling and drop-in replacement for many Group 4D applications.
  • Carry Handles – Stowable handles for easy transportation and installation.
  • UL 1973 Certified – Passes top tier requirements for durability and safety.
  • 5 Year Warranty – Backed by Rich Solar's dedicated customer support.

Why Choose Alpha Pro Series Batteries?

Rich Solar has established itself as a premier provider of high-quality lithium batteries and solar products tailored for RV owners, boaters, and off-grid users seeking reliable mobile power. Alpha Pro Series batteries showcase their dedication to excellence through premium A+ grade cells, smart Bluetooth technology, innovative internal heating, and has earned UL 1973 certification. Invest in the Alpha Pro Series for batteries that combine advanced features and exceptional longevity in the most demanding environments—backed by a 10-Year warranty.

Specifications

RS-B122SP

Alpha 2 Pro Specifications

12.8V 200Ah LiFePO4 Deep-Cycle Battery

  • Nominal Voltage 12.8V
  • Capacity 200Ah / 2560Wh
  • Group Size 4D
  • Chemistry Lithium (LiFePO4)
View additional specificationsHide additional specifications
Electrical & Performance
Chemistry Lithium (LiFePO4)
Nominal Voltage 12.8 Volts
Rated Capacity 200Ah / 2560Wh
Max Continuous
Discharge
200 Amps
Max 10-Second
Discharge
220 Amps
Low Voltage Cut-Off 11.2 Volts
Series Connections N/A
Parallel Connections Up to 4 (800Ah)
Operating
Temperature
-4°F - 140°F
(-20°C - 60°C)
Charging
Charging Voltage 14.4 Volts
Charging Current 100A (200A max)
Heater On/Off
(Powered By Charger)
On = 41°F (5°C)
Off = 50°F (10°C)
Dimensions & Fitment
Group Size 4D
Length 20.90" (53.2 cm)
Width 8.10" (20.7 cm)
Height 8.50" (21.5 cm)
Terminals M8 Inserts
Weight 48.50 lbs (22.0 kg)
Certifications & Warranty
Certifications UL 1973, ANSI, CAN, FCC, UN38.3, IP55, UL94 V-0
Cycle Life ≥7,000
Warranty 10 Years

Charging Note: Use a LiFePO4 compatible smart charger that meets the specifications listed.

Rich Solar Alpha 2 Pro Datasheet Rich Solar Alpha 2 Pro User Manual
BLUETOOTH

Rich Solar Bluetooth Battery Monitoring

View DetailsHide Details

Bluetooth Battery Monitoring

Smart power management allows you to view battery status, performance metrics, and even turn the batteries On/Off. Easy pairing by simply scanning your battery's barcode.

Quickly and Easily Check

  • State of Charge (SOC)
  • Voltage
  • Amperage In/Out
  • Remaining Capacity
  • Temperature
  • Battery Status

IOS Download   Rich Solar Android Download

IOS Download   Android Download



Rich Solar App Quick-Start Guide

Cross-Reference

Group 4D Lithium Batteries

View DetailsHide Details

Group 4D Flooded, AGM, & Gel Batteries: 12CRV-4D, 15020209, 1726-M4D1010, 4-DA, 4611299, 4D, 4D-2, 4D-3, 4D-9, 4D-AGM, 4D-AGM-MT, 4D-FLD, 4D-HD, 4D-XHD, 4D1080, 4D24, 4D3, 4D30, 4D31, 4DHD, 4DHD-30, 4DHDA, 4DM, 4DMDP, 4DMF-HD, 50005, 50006, 5001755, 7266, 7266EX, 8A4D, 8G4D, 904D, 904DF, 904DHD, ABP A904D, AM4D 8, BU804D, C4D-1, CB4D-IT, CB4DN-IT, COM-4D-P, CT5000, DB1050-4D, DC210-12, DC4D, EP TLV4D1010, EP904D, GPL-4DA, HP4D, M-4D, MB197-200, MP4D, MR197-200, NAU4D-DC, NSB-AGM4D, ODP-AGM4D, ODX-AGM4D, S12-230AGM, SLI4DA, SLR200, SRM-4D, T4-4D, WM8G4D, XTR4D-250.

Warning: LiFePO4 charger required if upgrading from non-lithium batteries.

Group 4D Lithium Batteries: ALPHA 2, ALPHA 2 LITE, ALPHA 2 PRO, LFP12200MH, RB200, RS-B12200, RS-B122S, RS-B122SP.

Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.

CHARGERS

Recommended Chargers for the Alpha 2 Pro

View DetailsHide Details
Compare

Group 4D Batteries

View DetailsHide Details
APPLICATIONS

Group 4D Lithium Battery Applications

View DetailsHide Details
Marine & Trolling Motors: Large Trolling Motors, House Power, Fish Finders
RV & Camper Vans: House Batteries, Inverters, 12V Appliances
Off-Grid Solar & ESS: Solar Battery Banks, Hybrid Inverters, Cabin Power Systems
Backup Power & UPS: Battery Backup Units, Telecom/Networking UPS, Inverter Systems
Deep-Cycle Only – Not for engine starting applications

Warranty Information

10 Year Pro-Rated Warranty | support@richsolar.com | 1-800-831-9889
