Product Description

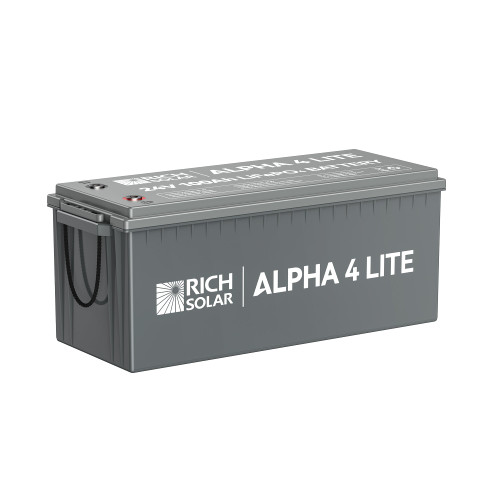

Alpha 4 Lite 24V 100Ah LiFePO4 Battery
The Rich Solar Alpha 4 Lite 24V 100Ah LiFePO4 Battery powers your RV, van, boat, or off-grid lifestyle with reliable high-capacity energy. Built using premium A+ grade LiFePO4 cells, it delivers 2560Wh of usable power and an exceptional 4,000+ cycle life that vastly outlasts traditional lead-acid batteries. With a strong 100 amp discharge capability and comprehensive protection from the built-in BMS, the Alpha 4 Lite gives you dependable performance and peace of mind wherever your adventures take you.
Features & Benefits
- Premium A+ Grade Cells – Powered by EV-grade LiFePO4 cells for reliable power over thousands of cycles.
- 100Ah Capacity – Longer run times for trolling motors, RV house loads, off-grid systems, and back up power.
- Advanced BMS – Protection from over/under voltage, over-current, short circuits, and temperature extremes.
- High Discharge Capability – Supports inverters and DC loads up to 100 continuous amps.
- Fast, Efficient Charging – Optimized for LiFePO4 smart chargers and solar charge controllers.
- Scalable Design – Wire up to 4 in parallel (up to 400Ah). Series connections are NOT permitted.
- Light Weight – Easier handling and drop-in replacement for many 24V Group 4D applications.
- Carry Handles – Stowable handles for easy transportation and installation.
- 5 Year Warranty – Backed by Rich Solar's dedicated customer support.
Why Choose Rich Solar LiFePO4 Batteries?
Rich Solar has established itself as a premier provider of high-quality lithium batteries and solar products tailored for RV owners, boaters, and off-grid users seeking reliable mobile power. The Alpha Series showcases their dedication to excellence through premium A+ grade cells, smart Bluetooth technology, and innovative internal heating. Invest in the Alpha Series for batteries that combine advanced features, exceptional longevity, and outstanding value for your active lifestyle.
RS-B24100
Alpha 4 Lite Specifications
25.6V 100Ah LiFePO4 Deep-Cycle Battery
- Nominal Voltage 25.6V
- Capacity 100Ah / 2560Wh
- Group Size 4D
- Chemistry Lithium (LiFePO4)
| Electrical & Performance | |
|---|---|
| Chemistry | Lithium (LiFePO4) |
| Nominal Voltage | 25.6 Volts |
| Rated Capacity | 100Ah / 2560Wh |
| Max Continuous Discharge |
100 Amps |
| Low Voltage Cut-Off | 22.4 Volts |
| Series Connections | N/A |
| Parallel Connections | Up to 4 (400Ah) |
| Operating Temperature |
-4°F - 140°F (-20°C - 60°C) |
| Charging | |
| Charging Voltage | 28.8 Volts |
| Charging Current | 50A (100A max) |
| Charging Temperature |
32°F - 130°F (0°C - 54°C) |
| Dimensions & Fitment | |
| Group Size | 4D |
| Length | 20.90" (53.2 cm) |
| Width | 8.10" (20.7 cm) |
| Height | 8.50" (21.5 cm) |
| Terminals | M8 Inserts |
| Weight | 48.50 lbs (22.0 kg) |
| Certifications & Warranty | |
| Certifications | IP55, UL94 V-0 |
| Cycle Life | ≥4,000 |
| Warranty | 5 Years |
Charging Note: Use a LiFePO4 compatible smart charger that meets the specifications listed.
Alpha 4 Lite Datasheet Alpha 4 Lite User Manual
