Product Description

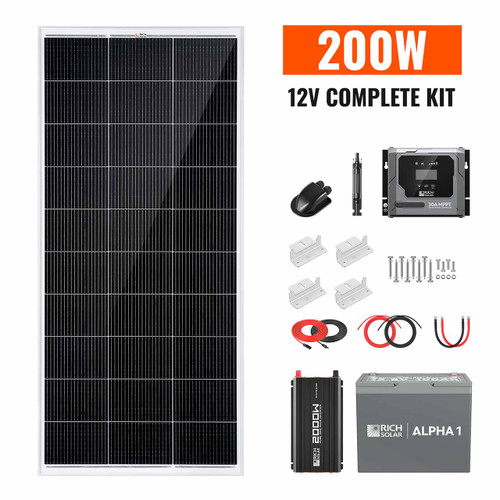

Complete 200W Solar Kit with Battery & Inverter
The Rich Solar Complete 200 Watt Solar Kit with Battery & Inverter combines a high-efficiency 200W monocrystalline solar panel, Alpha 1 100Ah lithium battery, Nova Pure 2000W inverter, 30A MPPT charge controller, charge controller cables, and installation hardware. The included Alpha 1 lithium battery and the Bravo 30 solar charge controller both feature built-in Bluetooth for wireless system monitoring and control. This expandable kit provides clean, quiet energy that keeps your batteries topped off during extended trips or remote stays, reducing generator noise and fuel costs while giving you the freedom to explore farther. With excellent solar performance and easy installation hardware included, you can confidently power your adventures and enjoy sustainable independence on the road year-round with the internally heated lithium battery and powerful pure sine wave inverter. Built with durable components and backed by a 25-year panel warranty, this kit offers long-lasting value and peace of mind for your mobile or off-grid power needs.
Features & Benefits
- 100Ah Lithium Battery – The Alpha 1 lithium battery features internal heating and built-in Bluetooth.
- Monocrystalline Panels – Outstanding energy conversion and reliable performance even during cloudy days.
- 120V Power – The Nova Pure 2K pure sine wave inverter produces clean AC voltage for sensitive electronics.
- Maximum Efficiency – N-Type cell technology improves light trapping and enhances energy collection.
- MPPT Charge Controller – Up to 98% charge conversion efficiency with over 99.5% tracking accuracy.
- Bluetooth – Monitor the Alpha 1 battery and Bravo 30 charge controller through the Rich Solar App.
- Built for Durability – AR-coated tempered glass and corrosion-resistant anodized aluminum frame.
- Reliable Low-Light Performance – Superior output during cloudy days and low-light periods.
- Expandable – Easily add more panels or batteries to grow your power capacity as your needs change.
- Long-Term Protection – A 25-year panel performance warranty guarantees minimal power degradation.
200W Complete Solar Kit w/Battery & Inverter Includes
- 1 x 200 Watt Monocrystalline Solar Panel (RS-M200)
- 1 x Alpha 1 Lithium Battery (RS-B121S)
- 1 x NOVA 2000W 12V Inverter (RS-V2P12)
- 1 x Bravo 30A MPPT Charge Controller (RS-MPPT30PB)
- 1 x Mounting Z Bracket Sets (RS-ZB4C)
- 1 x Cable Entry Housing (RS-C2B)
- 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
- 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
- 1 x 10' 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
- 1 x 2/0 Gauge 3/8" Battery Cables 4FT Cable Set (Inverter to Battery) (RS-2/0A4F3)
Why Choose Rich Solar Kits?
Rich Solar designs and manufactures high-quality solar solutions in-house specifically for the demands of RV owners, van lifers, and off-grid enthusiasts. These solar panel kits include a heated lithium battery and pure sine wave inverter to find the perfect balance of powerful solar output, smart MPPT technology, and a complete accessory package that simplifies installation. With industry-leading panel warranties and a focus on real-world durability and efficiency, Rich Solar delivers products that customers trust for years of dependable service. Choose Rich Solar to gain energy independence, reduce your environmental impact, and enjoy the confidence that comes from a thoughtfully engineered, expandable solar power system built to support your adventures mile after mile.
| Panel Type | Monocrystalline |
| Rated Power (PMAX) | 200 Watts |
| Max Power Voltage (VMPP) |
18.4 Volts |
| Max Power Current (IMPP) |
10.9 Amps |
| Open Circuit Voltage (VOC) |
21.8 Volts |
| Short Circuit Current (ISC) |
11.6 Amps |
| Expansion | Series / Parallel |
| Connectors | MC4 |
| Cable Length | 35.4 in (90 cm) |
| Dimensions | 58.7 x 26.8 x 1.2 in (149 x 68 x 3 cm) |
| Weight | 24.0 lbs (10.9 kg) |
| Certification | IP67 |
| Power Output Warranty |
25 Years |
| Battery Type | Lithium (LiFePO4) |
| Nominal Voltage | 12.8 Volts |
| Capacity | 100Ah |
| Energy | 1280Wh |
| Maximum Continuous Discharge |
100 Amps |
| Charging Current |
50A (100A max) |
| Charging Voltage |
14.4 Volts |
| Low Voltage Cut-Off |
11.2 Volts |
| Group Size | 24 |
| Length | 10.20" (25.9 cm) |
| Width | 6.60" (16.8 cm) |
| Height | 8.30" (21.1 cm) |
| Weight | 24.0 lbs (10.9 kg) |
| Terminals | M8 Inserts |
| Polarity | + Left / - Right |
| Operating Temperature |
-4°F - 140°F (-20°C - 60°C) |
| Heater On/Off (Powered By Charger) |
On = 41°F (5°C) Off = 50°F (10°C) |
| Parallel Connections |
Up to 4 (400Ah) |
| Series Connections |
N/A |
| Cycle Life | ≥5,000 |
| Certifications | IP65, UL94 V-0 |
| Warranty | 5 Years |
| Input Voltage | 12V DC |
| Output Voltage | 120V AC |
| Continuous Current | 2000 Watts |
| Peak Surge Current |
4000 Watts |
| Waveform | Pure Sine Wave |
| AC Outlets | 3 |
| USB Ports | 1 |
| Remote Control | Included |
| Length | 16.1" (409 mm) |
| Width | 9.6" (244 mm) |
| Height | 4.0" (102 mm) |
| Weight | 10.1 lbs (4.6 kg) |
Nova Pure 2K Datasheet
Nova Pure 2K User Manual
Nova Pure 2K Certifications
| Controller Type | MPPT |
| Nominal System Voltages |
12V / 24V |
| Charging Current (max) |
30 Amps |
| Solar Input Power (max) |
12V = 500W 24V = 1000W |
| Width | 7.0" (178 mm) |
| Height | 5.5" (142 mm) |
| Depth | 2.9" (74 mm) |
| Weight | 1.8 lbs (.8 kg) |
| Protection Rating | IP43 / IP22 |
| Warranty | 1 Year |
Bravo 30 Datasheet
Bravo 30 User Manual
Rich Solar Bluetooth App
Monitor charging status and performance. Easy pairing by simply scanning your controller's barcode.
