Product Description

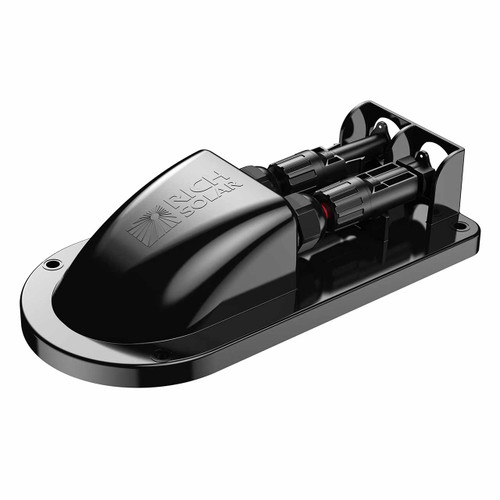

RV Roof Cable Entry Housing
The Rich Solar Cable Entry Plate is an IP68 waterproof polypropylene housing with UL 10AWG wires and solar connectors designed for easy installation. This flame-retardant PP housing operates in handles temperatures from -40°F to 185°F and supports high current loads up to 30 amps. Pre-assembled with tin-plated copper wires and MC4 type solar connectors, it creates a secure, weatherproof cable pass-through ideal for RVs, boats, cabins, and off-grid solar systems. Enjoy simplified cable management and reliable long-term protection that keeps your installation clean, safe, and professional.
Features & Benefits
- IP68 Waterproof – Flame-retardant polypropylene construction with PG9 head deliver superior protection.
- High Current Capacity – Handles 30A continuous loads with UL 10AWG wires for excellent conductivity.
- Pre-Assembled Connectors – Includes MC4 type solar connectors for faster, cleaner setup with minimal tools.
- Quick Low-Profile Install – Compact design mounts easily with adhesive, or sealant and screws (not included).
| Material | Flame-retardant Polypropylene |
| Continuous Current |
30 Amps |
| Maximum Current |
42 Amps |
| Max Voltage | 600 Volts |
| Waterproof Rating |
IP68 |
| Length | 7.2" (184 mm) |
| Width | 3.8" (97 mm) |
| Height | 2.0" (51 mm) |
| Weight | .34 lb (156 g) |
