Product Description

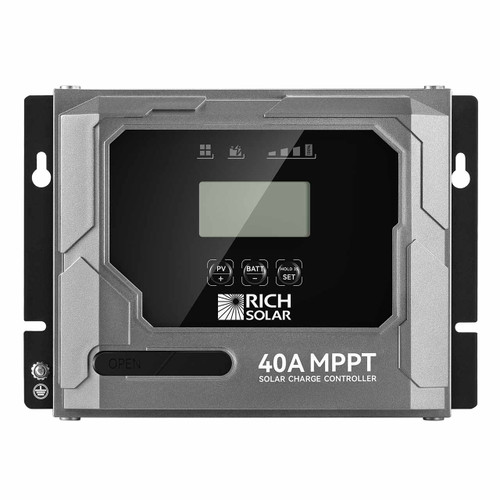

40 Amp Solar Charge Controller
The Rich Solar Bravo 40A MPPT Solar Charge Controller is a premium 12V/24V MPPT solar controller for RVs, trailers, campers, vans, boats, and off-grid systems. The Bravo 40 features true MPPT technology with multi-peak detection to achieve tracking efficiency above 99.5% and conversion efficiency as high as 98%, capturing maximum power. Auto system voltage detection, broad battery support including LiFePO4 and lead-acid types, plus a large informative LCD. Built-in Bluetooth puts reliable, efficient charging and easy real-time monitoring right at your fingertips for greater energy independence.
Features & Benefits
- MPPT Technology – Tracking efficiency above 99.5% for maximum energy harvest from every ray of sunlight.
- Battery Compatibility – Optimizes charging for Gel, AGM, WET, LiFePO4, LTO, LCO and custom profiles.
- High Conversion Efficiency – Up to 98% efficiency to minimize power loss and maximize battery charging speed.
- Large Informative LCD – Displays solar input, battery status, and charging data for complete system visibility.
- Advanced Protections – Includes reverse polarity, overvoltage, and deep-discharge recovery mode.
- Bluetooth Monitoring – Built-in Bluetooth allows monitoring of system status and live data.
- Auto 12V/24V Detection – Auto detects 12V or 24V system voltages for simplified setup.
- Lithium Recovery – Soft Start mode for charging over-discharged lithium batteries.
Why Choose Rich Solar Charge Controllers?
Rich Solar has led the off-grid solar industry since 2005 with in-house design and manufacturing focused on superior performance and reliability. The Bravo Series raises the bar with exclusive battery recovery algorithms, conformal-coated boards, rugged IP43 protection, and patented features that deliver lasting value trusted by RV and off-grid users across the nation. Whether powering a remote cabin, outfitting an RV for adventure, or building a resilient home backup system, Rich Solar equips you with the performance and reliability needed to achieve energy independence and maximize the return on your solar investment.
| Controller Type | MPPT |
| Nominal System Voltages |
12V / 24V |
| Charging Current (max) |
40 Amps |
| Solar Input Power (max) |
12V = 600W 24V = 1200W |
| Width | 7.7" (195 mm) |
| Height | 5.5" (142 mm) |
| Depth | 2.9" (74 mm) |
| Weight | 2.6 lbs (1.2 kg) |
| Protection Rating | IP43 / IP22 |
| Warranty | 1 Year |
Bravo 40 Datasheet
Bravo 40 User Manual
Bluetooth Charge Controller Monitoring
Monitor charging status and performance. Easy pairing by simply scanning your controller's barcode.
