Product Description
Group 27 AGM Marine Battery

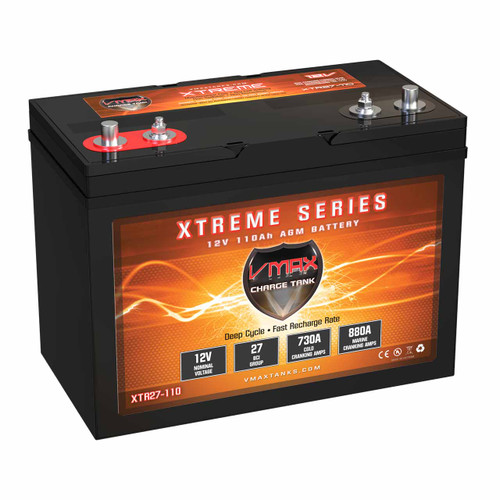

The VMAX XTR27-110 12V deep cycle marine battery delivers true dual-purpose AGM performance, combining 730 cold cranking amps with a 110Ah capacity in a standard Group 27 case. It’s built for applications that need both strong starting power and long, reliable runtime. Engineered using VMAX’s military-grade AGM construction, the XTR27-110 features thick internal plates, tightly packed separators, and a sealed, maintenance-free design. The result is excellent vibration resistance, high output, and durability that holds up in the toughest environments. Ideal for marine electronics, inverter systems, commercial equipment, and other high-draw applications.
Features & Benefits
- High Cranking Power – 730 cold cranking amps ensure reliable starting power in all weather conditions.
- 110Ah Deep-Cycle Capacity – Designed for frequent deep discharges without loss of capacity.
- AGM Construction – Heavy-duty plates with Absorbed Glass Mat separators for extreme durability.
- Heavy Vibration Resistance – Rugged construction ideal for marine, RV, and industrial environments.
- Group 27 – Direct-fit replacement for many marine, RV, and commercial equipment applications.
- Low Self-Discharge – Maintains a charge longer between uses than conventional flooded batteries.
- Temperature Tolerant – Dependable starting power in both high and low temperatures.
- Dual Terminal Design – 5/16″ Studs + SAE Automotive Posts provide versatile connections.
- Duracell Replacement – Direct-fit upgrade for Duracell SLI27MAGMDC batteries.
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
VMAX Xtreme Series AGM
VMAX Xtreme AGM batteries are engineered for applications that demand high power and zero excuses. Built with thick, military-grade lead plates and tightly compressed AGM separators, they deliver true deep-cycle endurance, fast recovery, and consistent output—day after day. These batteries are purpose-built for high-demand environments – inverter banks, off-grid systems, mobility equipment, trolling motors, and industrial machinery. You get rugged construction, long runtime, and maintenance-free reliability in a single battery that handles both starting bursts and sustained cycling.
XTR27-110
VMAX XTR27-110 Specifications
12 Volt Group 27 Dual-Purpose AGM Battery
- Nominal Voltage 12V
- Capacity 110Ah
- Cold Cranking 730A
- Group Size 27 / 27M
| Electrical | |
|---|---|
| Nominal Voltage | 12 Volts |
| Capacity | 110Ah |
| Type | Dual Purpose AGM |
|
Cold Cranking Amps |
730 Amps |
|
Marine Cranking Amps |
880 Amps |
| Dimensions & Fitment | |
| Group Size | 27 / 27M |
| Length | 12.0" (305 mm) |
| Width | 6.6" (168 mm) |
| Height | 8.5" (216 mm) 9.2" (234 mm) w/terminals |
| Terminals | SAE Top Posts & 5/16" Studs (hardware included) |
| Polarity | + Left / - Right |
| Weight | 67 lbs (30.4 kg) |
| Charging & Warranty | |
| Charging Current | 10 - 35 Amps |
| Charging Voltage | 14.4V - 14.9V |
| Float Voltage | 13.5V - 13.8V |
| Warranty | 1 Year |
Charging note: Do not use flooded-battery charge profiles on this battery.
VMAX XTR27-110 DatasheetBulk Pricing on VMAX XTR27-110 Batteries + Free Shipping
View DetailsHide Details2-3 — $6.00 Off Each
4-9 — $12.00 Off Each
10+ — $18.00 Off Each
Discounts automatically applied in shopping cart.
VMAX XTR27-110 Battery Cross-Reference
View DetailsHide DetailsGroup 27 Batteries with Automotive Posts: 0400209, 1001178278, 27DC, 27DCM, 27DC-DL, 27M-AGM-MT, 27M-DP, 8027-127, 8270144, 8A27M, 8G27M, BAT-8270, BTX-27M-27DC, DC27, GPL-27T, M27, MT-27, MTP-27, MTX-27, SLI27AGMDPM, SLI27MAGMDC, SLI27MAGMDCA, SLI27, SLI27AGMDP, SLI27AGMDPM, SLI27M, SLI27MA, SLI27MDC, SLI27MDP, SRM-27, US 27DC XC2, US AGM 27, XCA27-1200, XTR27-110.
Group 27 Batteries w/Studs or Insert Terminals: 0400209, 1001178278, 27DC, 27DC-DL, 27DCM, 27M-AGM-MT, 27M-DP, 45978, 8027-127, 8A27M, 8G27M, BAT-8270, CB121000-IT, CT2400, DURA12-100C/FR, DURHR12-370C/FR-A, EVX12100-FR, EXP100, GPL-27T, HRX12-100FR, M27, M-27DC, MB127-100, MR127-100, PDC-121000 M6, PDC-121050 M6, PS-121000 B, PS121000 M6, SCP121000 M6, SLAA12-100C/FR, SLI27AGMDPM, SLI27MAGMDC, SLI27MAGMDCA, SLI27MDC, SLI27MDP, SLR100, SRM-27, US 27DC XC2, US AGM 27, XCA27-1200, XTR27-110, UB121000, XP12-100FR.
Group 27 Batteries w/Dual Terminals: 0400209, 1001178278, 27DCM, 27M, 27M-AGM, 27M-AGM-MT, 27MDP, 8A27M, 8G27M, BAT-8270, CBEV-27-DT, D27M, NSB-AGM27M, ODX-AGM27M, PC1750M, SLI27AGMDPM, SLI27MAGMDC, SLI27MAGMDCA, SLI27MA, SLI27MDC, SLI27MDP, SRM-27, US 27DC XC2, US AGM 27, XCA27-1200, XTR27-110.
Group 27 Batteries w/Nut & Bolt Terminals: 0400209, 8A27-T876, CB121000-NB, DURDC12-100P, PDC-121000 U, PS-121000 U, WKDC12-100P, UB121000.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
