Product Description
8 Volt Golf Cart Batteries

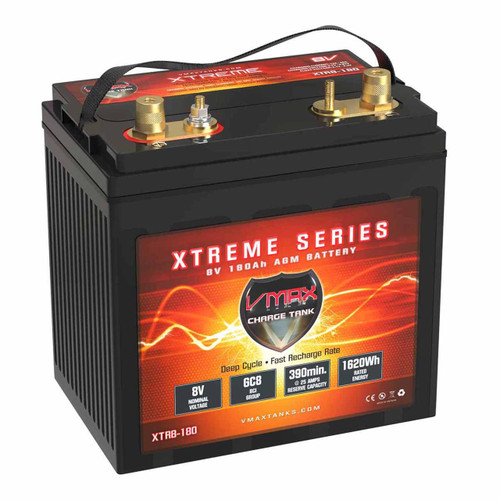

The VMAX XTR8-180 AGM 8V golf cart battery combines 700 cold cranking amps with a 180Ah deep-cycle capacity for excellent performance in carts requiring Group GC8 batteries. Built for golf carts that need both strong acceleration and long, reliable runtime around the neighborhood and on the golf course. Maintenance-free AGM technology ensures hassle-free operation, superior durability, and long service life.
Features & Benefits
- High Output – 700 cold cranking amps ensure reliable power in all weather conditions.
- 180Ah Deep-Cycle Capacity – Designed for frequent deep discharges without loss of capacity.
- Compatibility – AGM replacement for golf carts, floor scrubbers, and equipment using 8V GC8 batteries.
- AGM Construction – Heavy-duty plates with Absorbed Glass Mat separators for extreme durability.
- Heavy Vibration Resistance – Rugged construction ideal for utility vehicles and industrial environments.
- Low Self-Discharge – Maintains a charge longer between uses than conventional flooded batteries.
- Temperature Tolerant – Dependable starting power in both high and low temperatures.
- Dual Terminal Design – 5/16″ Studs + SAE Automotive Posts provide versatile connections.
- Group GC8 – AGM upgrade for 8V GC8-HCL-UTL, T-875, & NAPA 8148 batteries, plus many others.
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
Why Choose VMAX Xtreme Golf Cart Batteries?
VMAX Xtreme Series batteries are engineered to outperform standard options with premium materials and advanced manufacturing techniques that result in superior deep cycle performance and longevity. These AGM batteries provide golf cart owners with maintenance-free convenience, high starting power, and the reliability needed for daily use on long courses. Customers trust VMAX for their proven track record in delivering high-capacity, durable batteries that resist vibration, temperature extremes, and heavy use. Choosing VMAX means investing in batteries designed to maximize your golf cart’s uptime and enjoyment while minimizing maintenance and replacement costs over time. Experience the Xtreme difference with batteries built for real-world performance and lasting value.
XTR8-180
VMAX XTR8-180 Specifications
8 Volt Group GC8 AGM Golf Cart Battery
- Nominal Voltage 8V
- Group Size GC8
- Capacity 180Ah
- Cold Cranking Amps 700A
| Electrical | |
|---|---|
| Nominal Voltage | 8 Volts |
| Capacity | 180Ah |
| Type | Dual Purpose AGM |
| Cold Cranking Amps |
700 Amps |
| Marine Cranking Amps |
875 Amps |
| Dimensions & Fitment | |
| Group Size | GC8 |
| Length | 10.20" (259 mm) |
| Width | 7.17" (182 mm) |
| Height | 10.50" (267 mm) 10.87" (276 mm) w/terminals |
| Terminals | SAE Top Posts & 5/16" Studs (hardware included) |
| Polarity | + Left / - Right |
| Weight | 76 lbs (34.5 kg) |
| Charging & Warranty | |
| Charging Current | 12 - 50 Amps |
| Charging Voltage | 9.7V - 9.87V |
| Float Voltage | 9.1V - 9.2V |
| Warranty | 1 Year |
Charging Note: Use an 8V AGM-compatible charger at 9.7V–9.87V (float 9.1V–9.2V). Do not use flooded-battery charge profiles on this battery.
VMAX XTR8-180 DatasheetBulk Pricing on VMAX XTR8-180 Batteries + Free Shipping
View DetailsHide Details2-3 — $8.00 Off Each
4-8 — $15.00 Off Each
9+ — $20.00 Off Each
Discounts automatically applied in shopping cart.
VMAX XTR8-180 Battery Cross-Reference
View DetailsHide Details8 Volt Group GC8 Batteries: 1726-MGC8M, 4610813, 8148, 8G8VGC, 8VGC, ABP AGC8V, AMP-GC8-120, BUGC8, CBEV-GC8-DT, CR-150, CR-165, DBGC8V, DC-8V, EGL170-8, EP VGC8V, EPGC8V, EV-145, EV875, GC-8, GC2-165, GC45, GC8, GC8-120, GC8-8V, GC8-GOLF, GC8-HCL-UT, GC8-HCL-UTL, GC8120, GC8V, GC8V-110, GC8VP, GC8VT, HPGC8, M-GC8-UTL, MP-GC8, PF-GC8-UTL, PS8VGC, S910-LX, SLIGC8V, T-875, T875-AES, US 8VGC XC2, US 8VGCE XC2, US-145XC, US-8VGC-XC2, XTR8-180.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
Group GC8 Batteries
View DetailsHide Details8V Group GC8 Applications
View DetailsHide DetailsFloor Scrubbers & Commercial Equipment
Scissor Lifts, Pallet Jacks & Material Handling Vehicles
