Product Description

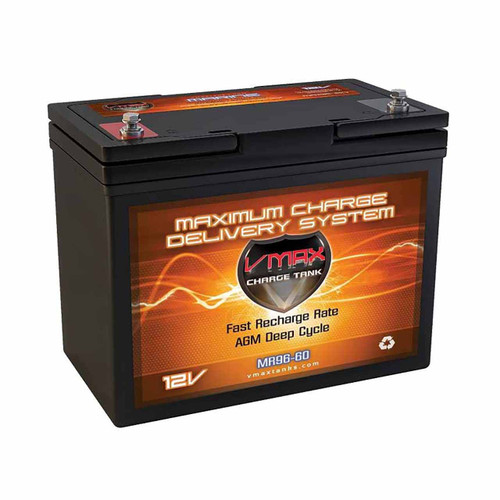

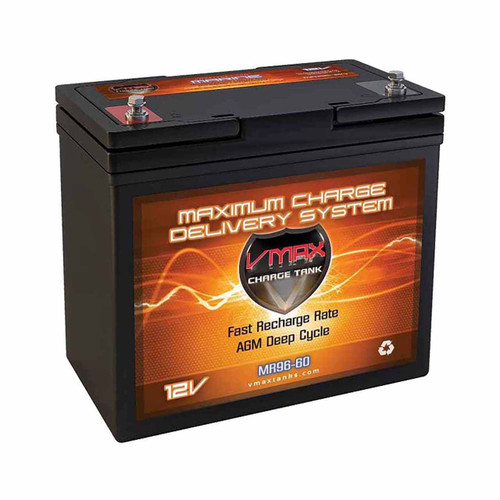

60Ah AGM Marine Battery
The VMAX MR96-60 12V deep cycle marine battery delivers true AGM performance with a 60Ah capacity in a compact Group 22NF case. It’s built for applications that need strong, steady power for extended periods.
Engineered using VMAX’s military-grade AGM construction, the MR96-60 features thick internal plates, tightly packed separators, and a sealed, maintenance-free design. The result is excellent vibration resistance, high output, and durability that holds up in the toughest environments.
Features & Benefits
- 60Ah Deep-Cycle Capacity – Designed for frequent deep discharges without loss of capacity.
- High Output – 600 cranking amps ensure reliable power in all weather conditions.
- AGM Construction – Heavy-duty plates with Absorbed Glass Mat separators for extreme durability.
- Heavy Vibration Resistance – Rugged construction ideal for marine, RV, and industrial environments.
- Group 22NF – Direct-fit replacement for numerous marine, RV, and off-grid applications.
- Low Self-Discharge – Maintains a charge longer between uses than conventional flooded batteries.
- Temperature Tolerant – Dependable starting power in both high and low temperatures.
- M8 Insert Terminals – Includes new hardware for quick installation and secure connections.
- Left-Positive Polarity – Verify your current battery's terminal locations before purchase.
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
VMAX Marine Series AGM
VMAX Marine deep cycle batteries are engineered for applications that demand consistent power and zero excuses. Built with thick, military-grade lead plates and tightly compressed AGM separators, they deliver true deep-cycle endurance, fast recovery, and consistent output—day after day.
These batteries are purpose-built for tough environments – from marine electronics & trolling motors, to house power banks. You get rugged construction, long runtime, and maintenance-free reliability in a single platform that handles long power draws and sustained cycling. When failure isn’t an option and compromises cost you, VMAX Marine AGM is built to perform.
MR96-60
VMAX MR96-60 Specifications
12 Volt Group 22NF AGM Deep Cycle Marine Battery
- Nominal Voltage 12V
- Capacity 60Ah
- Group Size 22NF
- Type Deep-Cycle AGM
| Electrical | |
|---|---|
| Nominal Voltage | 12 Volts |
| Capacity | 60Ah |
| Type | Deep-Cycle AGM |
| Cold Cranking Amps |
480 Amps |
| Marine Cranking Amps |
600 Amps |
| Dimensions & Fitment | |
| Group Size | 22NF |
| Length | 9.20" (234 mm) |
| Width | 5.50" (140 mm) |
| Height | 8.20" (208 mm) 8.38" (213 mm) w/terminals |
| Terminals | M8 Inserts (hardware included) |
| Polarity | + Left / - Right |
| Weight | 44 lbs (20 kg) |
| Charging & Warranty | |
| Charging Current | 4 - 20 Amps |
| Charging Voltage | 14.4V - 14.9V |
| Float Voltage | 13.5V - 13.8V |
| Warranty | 1 Year |
Charging Note: Use a 12V AGM-compatible charger at 14.4V–14.9V (float 13.5V–13.8V). Do not use flooded-battery charge profiles on this battery.
MR96-60 DatasheetVMAX MR96-60 Battery Cross-Reference
View DetailsHide DetailsReplaces 22NF Batteries with M6 Terminals: AGM12-55, CA12550, CT1500, DURA12-55C/FR, MB96-60, MR96-60, SLR60, PS-12550 B, PS-12550 M6, PS-12600, RG12550I4, SCP12550 M6, SLAA12-55C/FR.
Replaces 22NF Batteries with Nut & Bolt Terminals: 40740, 45825, 8A22NF, 8G22NF, CF-12V55G, DN55-12, DURA12-55P, DURDC12-55P, DURG12-50P, DURG12-50P-A, M22NF SLD G, ML55-12, PDC-12600, PS-12550 U, SCP12550 NB, SLA12-55P, SLAG12-50P, SP12-55, UB12550, WB12550, WKDC12-55P.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
