Product Description

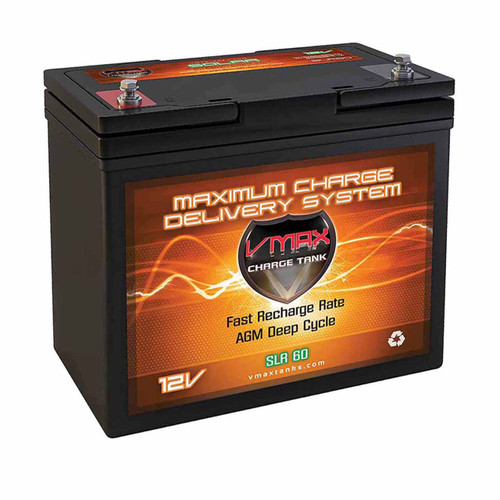

AGM Deep Cycle 22NF Battery
The VMAX SLR60 12V deep cycle battery delivers true AGM performance with an 60Ah capacity in a compact Group 22NF case. It’s built for use in RV's, and off-grid energy storage applications that need lasting, steady power for extended periods of time. Engineered using VMAX’s military-grade AGM construction, the SLR60 features thick internal plates, tightly packed separators, and a sealed, maintenance-free design. The result is excellent durability that holds up in the toughest environments.
Features & Benefits
- 60Ah Deep-Cycle Capacity – Designed for frequent deep discharges without loss of capacity.
- AGM Construction – Heavy-duty plates with Absorbed Glass Mat separators for extreme durability.
- Vibration Resistance – Rugged construction that's ideal for RV, marine, and mobile environments.
- Low Self-Discharge – Maintains a charge longer between uses than conventional flooded batteries.
- Temperature Tolerant – Dependable power in both high and very low temperatures.
- Group 22NF – Replacement or upgrade for many RV, marine, and off-grid applications.
- Compatibility – Direct-fit replacement the Duracell DURA12-55C/FR & DURA12-55P batteries.
- M8 Insert Terminals – Includes new hardware for quick installation and secure connections.
- Left-Positive Polarity – Verify your current battery's terminal locations before purchase.
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
VMAX SLR Series AGM Batteries
VMAX SLR Series AGM batteries batteries designed to deliver dependable deep-cycle power, day in and day out. Constructed with military-grade lead plates and sealed AGM technology, these batteries deliver consistent performance with zero maintenance and extremely low self-discharge. They’re engineered to handle deep cycling, long standby periods, and heavy vibrations—making them ideal for solar systems, RV's, marine applications, and backup power. Available in capacities from 50Ah to 200Ah, the SLR Series scales easily to match your power requirements without compromise. Whether you’re running off-grid or preparing for outages, VMAX SLR batteries hold their charge, cycle cleanly, and are built to perform—year after year.
SLR60
VMAX SLR60 Specifications
12 Volt Group 22NF Deep Cycle AGM Battery
- Nominal Voltage 12V
- Capacity 60Ah
- Group Size 22NF
- Type Deep-Cycle AGM
| Electrical | |
|---|---|
| Nominal Voltage | 12 Volts |
| Capacity | 60Ah |
| Type | Deep-Cycle AGM |
| Cold Cranking Amps |
480 Amps |
| Marine Cranking Amps |
600 Amps |
| Dimensions & Fitment | |
| Group Size | 22NF |
| Length | 9.20" (234 mm) |
| Width | 5.50" (140 mm) |
| Height | 8.20" (208 mm) |
| Terminals | M8 Inserts (hardware included) |
| Polarity | + Left / - Right |
| Weight | 43 lbs (19.5 kg) |
| Charging & Warranty | |
| Charging Current | 4 - 20 Amps |
| Charging Voltage | 14.4V - 14.9V |
| Float Voltage | 13.5V - 13.8V |
| Warranty | 1 Year |
Charging Note: Use a 12V AGM-compatible charger at 14.4V–14.9V (float 13.5V–13.8V). Do not use flooded-battery charge profiles on this battery.
VMAX SLR60 DatasheetVMAX SLR60 Battery Cross-Reference
View DetailsHide DetailsReplaces 22NF Batteries with M6 Terminals: AGM12-55, CA12550, CT1500, DURA12-55C/FR, MB96-60, MR96-60, SLR60, PS-12550 B, PS-12550 M6, PS-12600, RG12550I4, SCP12550 M6, SLAA12-55C/FR.
Replaces 22NF Batteries with Nut & Bolt Terminals: 40740, 45825, 8A22NF, 8G22NF, CF-12V55G, DN55-12, DURA12-55P, DURDC12-55P, DURG12-50P, DURG12-50P-A, M22NF SLD G, ML55-12, PDC-12600, PS-12550 U, SCP12550 NB, SLA12-55P, SLAG12-50P, SP12-55, UB12550, WB12550, WKDC12-55P.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
