Product Description

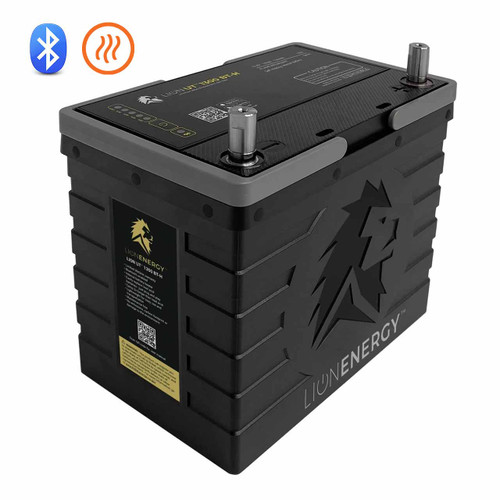

Lion Energy UT 1300 BT-H self heating lithium battery with 105Ah capacity and the latest in bluetooth battery technology. A perfect lithium battery upgrade for RV's, trolling motors, marine electronics and solar energy storage in a compact group 24 case and weighing under 26 lbs. Lithium deep cycle battery durability, backed by a limited lifetime warranty.
UT 1300 BT-H Features:
- Self-heated to keep the lithium battery at optimal charging temperatures for year-round use.
- Built-in Bluetooth allows you to monitor battery status and operating conditions with the Lion Energy Smart app.
- 105Ah of long lasting deep cycle lithium performance.
- Compact & lightweight at 25.5 lbs in a group 24 case.
- BMS supports parallel connections up to 420Ah and series up to 48V.
- Folding handles for easy carrying and installation.
- Limited Lifetime Warranty. It may be the last battery you'll ever buy.
Twice the Energy
Standard lead acid batteries give you 50% of the Ah rating as usable energy. The Safari UT 1300 BT gives you 100% usage of all 105Ah to keep you powered twice as long on a single charge as lead-acid.
Less Weight
At only 23 lbs, and a standard group 24 size, the UT 1300 BT is about 1/2 the weight of traditional batteries yet exceptionally powerful.
Expandable for More Power
One Lion Safari UT 1300 BT can provide 150 amps of continuous and a 900A peak discharge. For higher capacity or voltages, they can be connected in parallel up to 4 for 420Ah, or 4 in series for up to 48 volts.
Longer Lifespan
3,500+ charging cycles at full depth of discharge (DOD) and can hold a charge for up to 2 years.
Battery Management System (BMS)
The Safari UT series all have an internal Battery Management System (BMS) that acts as a safety net to shut down the battery if it out of parameters. This prevents the battery from overcharging or discharging as well as operating outside of the temperature range.
Charging
Fast charging at up to 100 amps. LiFePO4 compatible charger required. Save 10% on a NOCO or Lion Energy charger when bundled with battery using option above.
Cold Weather Charging
Fully automatic internal heater turns on at 32°F when connected to a charger and uses only 5 amps to start the warming process. Heater automatically turns off at 41°F for energy conservation.
Lifetime Warranty
The UT 1300 BT 12V lithium battery comes with a limited lifetime warranty and is the last battery you'll probably ever need. Using Lithium Iron Phosphate technology, it can be drained and recharged over 3,500 times. Years and years longer than lead acid batteries.
Note: This is a deep cycle battery and is not designed for engine starting applications.
Recommended Chargers
Multiple charging options are available with this battery to suit your various needs. 10% discount on a charger when bundled with battery using option above.
- NOCO 10A Charger & Maintainer - Charges at 10 amps and then maintains the battery 24/7. Connect it and forget it convenience.
- Lion Energy 45A Charger - Fully charges a UT 1300 in under 2.5 hours.
UT 1300 BT-H User Guide
Lion Energy UT 1300 BT-H Specs
| Voltage |
12.8V |
| Capacity |
105Ah / 1344Wh |
| Type |
Lithium
(LiFePO4) |
Max Continuous
Discharge |
150A |
| Group Size |
24 |
| Length |
10.2" |
| Width |
6.6" |
| Height |
8.8"
9.8" w/terminals |
| Terminals |
M6 Inserts &
SAE Posts |
| Polarity |
- Left / + Right |
| Weight |
23 lbs |
Series
Connections |
Up to 4 (48V) |
Parallel
Connections |
Up to 4 (420Ah) |
Operating
Temperatures |
-4°F - 131°F |
Charging
Temperatures |
32°F - 113°F |
Charging
Voltage |
13.9V - 14.6V |
Charging
Amps |
100A Max |
Heater On
(Powered by
Charger) |
32°F |
| Heater Off |
41°F |
| BMS Protection |
Yes (See below) |
Low Voltage
Cut-Off |
10.0V |
Discharge
Current
Protection |
>150A for
50 seconds |
Charging
Current
Protection |
>100A |
Estimated
Lifespan |
3,500+ cycles
@ 100% DOD |
| Certifications |
FCC, UL 1642,
RoHS, CE |
| Warranty |
11 Years |
