Product Description

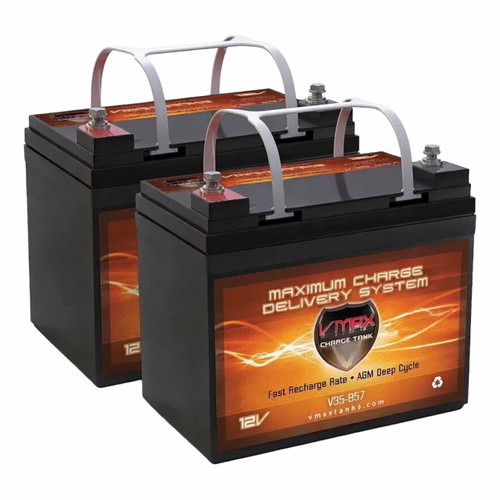

24 Volt Floor Cleaner Battery Set
The VMAX Group U1 Floor Scrubber & Sweeper 24V AGM Battery Set combines two V35-857 batteries that feature high-load capability and true AGM deep-cycle performance. With 35Ah capacity, they deliver dependable power and extended runtime for commercial floor-cleaning equipment that use Group U1 batteries. Engineered for tough daily use, this sealed, maintenance-free set provides consistent power, fast recovery, and rugged durability. Your scrubbers and sweepers stay productive longer, with fewer interruptions and lower upkeep costs.
Features & Benefits
- Deep-Cycle Durability – Designed for deep discharges with longer lifespan than standard batteries.
- Group U1 – Direct-fit replacement for many floor sweepers, scrubbers, and sprayers.
- AGM Technology – Improved plate design for increased durability and extended lifespan.
- VRLA Battery – Sealed design for installation in multiple orientations without leakage.
- Temperature Tolerant – Excellent performance in both high and low temperatures.
- Low Self-Discharge – Maintains a charge longer during extended stand-by periods.
- M6 Terminals – 6mm threaded insert terminals with new hardware included.
- Wide Compatibility – Replaces DURA12-35C, DURDC12-35J, plus many others.
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
Why Choose VMAX Floor Cleaning Batteries?
VMAX AGM deep cycle batteries are engineered with military-grade AGM technology for hard working commercial equipment. Thick plates, compressed separators, and sealed construction deliver true deep-cycle endurance, long runtime, and maintenance-free reliability that commercial operators can rely on day after day. You get rugged construction, long runtime, and maintenance-free reliability in a single battery that handles long power draws and sustained cycling. Experience the value of VMAX AGM batteries with longer lifespans and less time required keeping up with the maintenance of standard batteries.
V35-857
VMAX V35-857 Specifications
12 Volt 35Ah AGM Floor Machine Battery
- Nominal Voltage 12V
- Capacity 35Ah
- Terminals M6 Inserts
- Chemistry Deep-Cycle AGM
| Electrical & Performance | |
|---|---|
| Chemistry | Deep-Cycle AGM |
| Nominal Voltage | 12 Volts |
| Capacity | 35Ah |
| Cold Cranking Amps |
300 Amps |
| Marine Cranking Amps |
390 Amps |
| Dimensions & Fitment | |
| Group Size | U1 |
| Length | 7.70" (196 mm) |
| Width | 5.00" (127 mm) |
| Height | 6.10" (155 mm) 6.60" (168 mm) w/terminals |
| Terminals | M6 Inserts (hardware incl.) |
| Polarity | + Left / - Right |
| Weight | 25 lbs (11.3 kg) |
| Charging & Warranty | |
| Charging Current | 3 - 15 Amps |
| Charging Voltage | 14.4 - 14.9 Volts |
| Float Voltage | 13.5 - 13.8 Volts |
| Warranty | 1 Year |
Charging Note: Use a 12V AGM-compatible charger at 14.4V–14.9V (float 13.5V–13.8V). Do not use flooded-battery charge profiles on this battery.
VMAX V35-857 DatasheetVMAX V35-857 Battery Cross-Reference
View DetailsHide DetailsGroup U1 Batteries with M5/M6 Insert Terminals: CB12350-IT, CBEV-U1-IT, CP12350I, CT1050, DCM0035, DURA12-35C, ES35-12FT, GP12350I, LC-XD1235PI, LCR12V35PI, LFP1250B, LFP1250M, MU-1 SLD M FT, MU-1 SLD M-33-FT, ML35-12INT, NP35-12I, PE12V35I, PK12350I, PS-12350 B, PS12350I, SCP12350 M6, SLA12-35I, SLAA12-35C, UB12350I, UB12350 TH, V35-857.
Group U1 Batteries with Nut & Bolt Terminals: 12N35-3B, 12V32-U1, 15020225, 1726-M8AU1, 50141, 6FM33, 8226, 8AU1, 8AU1H, 8GU1, 8GU1H, ABP A8AU1, AGM U1, AGMU1, AU1, AU1H, CA12350, CB-U1-AGM, CB12350-NB, CBEV-U1-NB, CP12350NB, DB8AU1, DC35-12, DCM0035NB, DURDC12-35J, DURG12-31J-A, EP V8AU1, ES33-12, ES35-12NB, ESU1, ESU1-35, ESU1H, EXP35, GP12350-NB, LCR12V35P-NB, ML35-12NB, MU-1 SLD A, MU-1 SLD G, MU-1 SLD M, MU-1 SLD M-33, NB12-35, NGU1, NP35-12NB, PDC-12350 NB3, PE12V35NB, PK12350-NB, PS-12350 NB, SCP12350 NB, SLADC12-35J, SLIAU1, SLIAU1H, SP-18, SP-30, SP-35, SP-40, U131AH, U1A-200, U1AGM, U1L-AGM-NB, U1RVS, UB12350-NB, WB1235.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
