Product Description

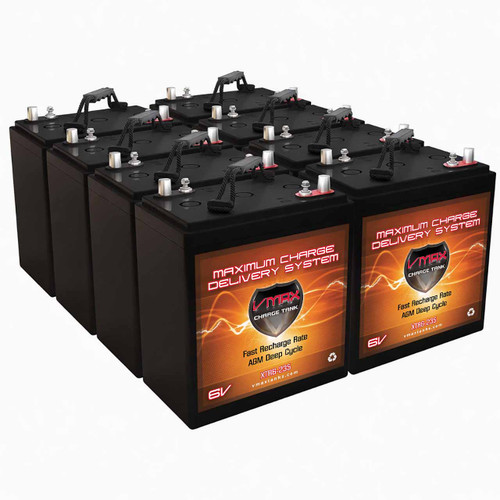

8-Pack of 6 Volt AGM Boom Lift Batteries
This VMAX 48V Aerial Boom Lift Battery Set combines eight XTR6-235 AGM deep-cycle batteries with 235Ah capacity to deliver lasting 48 volt power for aerial booms using Group GC2 batteries. Built for hard working equipment, VMAX Xtreme XTR6-235 high-performance batteries combine strong power with high capacity for extended run time and top performance on the job site or around the warehouse. Maintenance-free AGM technology combined with 100% virgin lead plates ensures hassle-free operation, superior durability, and long service life. Experience the value VMAX AGM batteries provide with longer lifespans, lower maintenance costs, and more in-service time for your equipment.
Features & Benefits
- High Output – 1,100 cranking amps ensure reliable power in all weather conditions.
- 235Ah Deep-Cycle Capacity – Designed for frequent deep discharges without loss of capacity.
- Compatibility – AGM upgrade for 48 volt aerial boom lifts using Group GC2 batteries.
- AGM Construction – Heavy-duty plates with Absorbed Glass Mat separators for extreme durability.
- Heavy Vibration Resistance – Rugged construction ideal for marine, RV, and industrial environments.
- Low Self-Discharge – Maintains a charge longer between uses than conventional flooded batteries.
- Temperature Tolerant – Dependable starting power in both high and low temperatures.
- Dual Terminal Design – 5/16″ Studs + SAE automotive posts provide versatile connections.
- Group GC2 – Direct-fit replacement for many boom lifts and other industrial lift applications. Cross-Reference
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
VMAX Xtreme Series AGM Lift Batteries
VMAX Xtreme AGM batteries are engineered for applications that require high power and daily cycling resilience. Built with thick, military-grade lead plates and tightly compressed AGM separators, they deliver true deep-cycle endurance, fast recovery, and consistent output—day after day. These batteries are purpose-built for high-demand environments – boom lifts, telehandlers, scissor lifts, and other industrial machinery. You get rugged construction, long runtime, and maintenance-free reliability in a single battery that handles both high energy bursts and sustained cycling.
| Nominal Voltage | 6 Volts |
| Capacity | 235Ah |
| Type | Dual Purpose AGM |
| Cold Cranking Amps (CCA) |
1100 Amps |
| Marine Cranking Amps (MCA) |
1375 Amps |
| Group Size | GC2 |
| Length | 10.24" (260 mm) |
| Width | 7.10" (180 mm) |
| Height | 10.35" (263 mm) 11.00" (279 mm) w/terminals |
| Terminals | SAE Top Posts & 5/16" Studs (hardware incl.) |
| Weight | 78 lbs (35.4 kg) |
| Charging Current | 15 - 65 Amps |
| Charging Voltage | 7.2V - 7.35V |
| Float Voltage | 6.8V - 6.9V |
| Warranty | 1 Year |
6 Volt Group GC2 Batteries: 0400067, 0400215, 6CRV220, 70013987, 76502 (GT/GN), 8AGC2, 8GGC2, 8143, 8144, 8146, CBEV-GC2-DT, CR-205, CR-220, CR-235, CR-240, CR-245, DC224-6, DC250-6, E3600, EGC2, EV125, G110-12, GC-100, GC-110, GC10, GC100, GC110, GC110DT, GC115, GC15, GC2, GC2-110, GC2-6V, GC2-6V-HD, GC2-6V-XHD, GC2-ECL-S, GC2-ECL-UT, GC2-ECL-UTL, GC2-GOLF, GC2-HCL-UT, GC2-HCL-UTL, GC2-HD-AGM, GC2HC-UTL, GC2200P, GC25, GC45, GN1299390GT, GN76502, HPGC, LDC6-210-GC2, M-GC2-UTL, PF-GC2-UTL, SLIGC110, SLIGC115, SLIGC125, SLIGC145UT, SLIGC2-105, SLIGC6VAGM, T-105, T105+, T-125, T-125+, T-605, UP015796-000, US 125 XC2, US 145 XC2, US 1800 XC2, US 2000 XC2, US 2200 XC2, US AGM 2000, US AGM 2224, US AGM 6V260, V6-225, XTR6-235, XTR6-235M.
The XTR6-235M is the same battery, but with M8 Insert terminals.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
Compare All Group GC2 Batteries
Recommended Chargers for the XTR6-235 48V Set
Battery Tender 48V 15A Battery Charger & Maintainer
