Product Description
24 Volt Floor Cleaner Battery Set

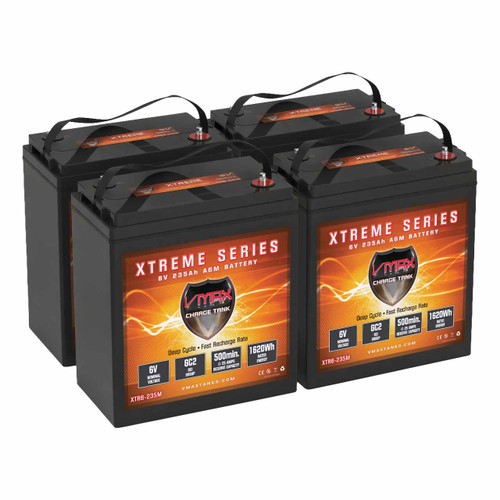

The VMAX Group GC2 24V Floor Scrubber & Sweeper AGM Battery Set combines four XTR6-235M batteries that feature high-load capability and true AGM deep-cycle performance. With 235Ah capacity, they deliver dependable power and extended runtime for commercial floor-cleaning equipment that use GC2 batteries. Engineered for tough daily use, this sealed, maintenance-free set provides consistent power, fast recovery, and rugged durability. Your scrubbers, sweepers, burnishers, and carpet extractors stay productive longer, with fewer interruptions and lower upkeep costs.
Features & Benefits
- Xtreme Series AGM Design – Heavy-duty plates deliver exceptional durability and high charge cycles.
- Sealed Design – Eliminates watering and acid spills for safer, hassle-free operation in busy facilities.
- Group GC2 – Direct-fit replacement for many floor scrubbers, sweepers, burnishers, and carpet extractors.
- 235Ah Deep-Cycle Capacity – Extended runtime to complete more work between charges.
- Fast Recharge Capability – Accepts high charge rates for quicker turnaround between uses.
- Low Self-Discharge – Maintains a charge longer between uses than flooded batteries.
- Temperature Tolerant – Maintains dependable power in both high and low temperatures.
- M8 Terminals – Easy installations and secure connections with new hardware included.
- GC2 Replacement – AGM upgrade for Trojan T-105, T-125, plus many others. Cross-Reference
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
Note: The XTR6-235M has M8 threaded insert terminals only. These do NOT have automotive posts. For dual terminals, check out the 24V GC2 Package with Dual Terminals.
Why Choose VMAX Xtreme Floor Cleaning Batteries?
VMAX Xtreme Series batteries are engineered to outperform standard batteries with premium materials and advanced manufacturing techniques that result in superior deep cycle performance and longevity. These AGM batteries provide equipment owners with maintenance-free convenience, high starting power, and the reliability needed for daily use on long shifts. Customers trust VMAX for their proven track record in delivering high-capacity, durable batteries that withstand vibrations, temperature extremes, and heavy use. Choosing VMAX means investing in batteries designed to maximize your equipment's uptime while minimizing maintenance and replacement costs over time. Experience the Xtreme difference with batteries built for strong performance and lasting value.
| Nominal Voltage | 6 Volts |
| Capacity | 235Ah |
| Type | Dual Purpose AGM |
| Cold Cranking Amps |
1100 Amps |
| Marine Cranking Amps |
1375 Amps |
| Group Size | GC2 |
| Length | 10.24" (260 mm) |
| Width | 7.10" (180 mm) |
| Height | 10.35" (263 mm) 11.00" (279 mm) w/terminals |
| Terminals | M8 Inserts (hardware incl.) |
| Weight | 78 lbs (35.4 kg) |
| Charging Current | 15 - 65 Amps |
| Charging Voltage | 7.2V - 7.35V |
| Float Voltage | 6.8V - 6.9V |
| Warranty | 1 Year |
Similar Batteries
View 24V Floor Cleaner Battery Packages in Other Group Sizes
Compare Other Group GC2 Batteries
VMAX XTR6-235M Battery Cross-Reference
6 Volt Group GC2 Batteries: 0400067, 0400215, 6CRV220, 70013987, 76502 (GT/GN), 8AGC2, 8GGC2, 8143, 8144, 8146, CBEV-GC2-DT, CR-205, CR-220, CR-235, CR-240, CR-245, DC224-6, DC250-6, E3600, EGC2, EV125, G110-12, GC-100, GC-110, GC10, GC100, GC110, GC110DT, GC115, GC15, GC2, GC2-110, GC2-6V, GC2-6V-HD, GC2-6V-XHD, GC2-ECL-S, GC2-ECL-UT, GC2-ECL-UTL, GC2-GOLF, GC2-HCL-UT, GC2-HCL-UTL, GC2-HD-AGM, GC2HC-UTL, GC2200P, GC25, GC45, GN1299390GT, GN76502, HPGC, LDC6-210-GC2, M-GC2-UTL, PF-GC2-UTL, SLIGC110, SLIGC115, SLIGC125, SLIGC145UT, SLIGC2-105, SLIGC6VAGM, T-105, T105+, T-125, T-125+, T-605, UP015796-000, US 125 XC2, US 145 XC2, US 1800 XC2, US 2000 XC2, US 2200 XC2, US AGM 2000, US AGM 2224, US AGM 6V260, V6-225, XTR6-235, XTR6-235M.
6 Volt Group GC2 Batteries w/Studs or Insert Terminals Only: 0400215, 70013987, GN1299390GT, GN76502, SLIGC2-105, T-105, T105+, T-125, T-125+, US 125 XC2, US 145 XC2, UP015796-000, US 1800 XC2, US 2000 XC2, US2200 XC2, US AGM 2224, V6-225, XTR6-235M.
The XTR6-235 is the same battery, but with the addition of automotive post terminals.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
Recommended Charger for the XTR6-235M 24V Set
Battery Tender 24V 20A Battery Charger & Maintainer
