Product Description

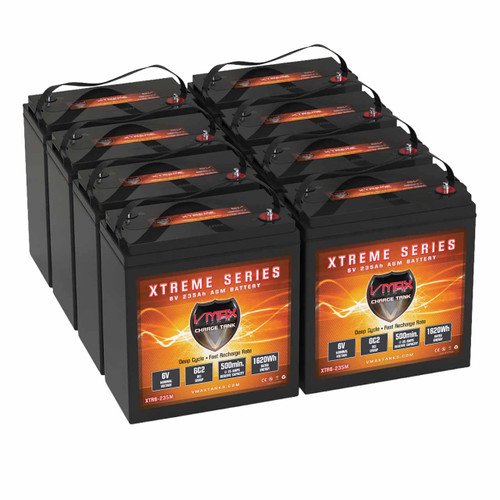

VMAX Group GC2 48V Battery Set
This is an 8-Pack of VMAX XTR6-235M 6V 235Ah deep cycle AGM batteries to be connected in series for 48 volt equipment and utility vehicles using Group GC2 batteries with eyelet or lug cables. VMAX Xtreme high-performance batteries deliver strong 48V power with 235Ah capacity for extended run time and top performance on the job site or around the warehouse. Maintenance-free AGM technology ensures hassle-free operation, superior durability, and long service life.
Features & Benefits
- High Output – 1,100 cranking amps ensure reliable power in all weather conditions.
- 235Ah Deep-Cycle Capacity – Designed for frequent deep discharges without loss of capacity.
- Compatibility – Replacement for 6V GC2 applications using cables with eyelets or lug connections.
- AGM Construction – Heavy-duty plates with Absorbed Glass Mat separators for extreme durability.
- Heavy Vibration Resistance – Rugged construction ideal for marine, RV, and industrial environments.
- Low Self-Discharge – Maintains a charge longer between uses than conventional flooded batteries.
- Temperature Tolerant – Dependable starting power in both high and low temperatures.
- M8 Terminals – Versatile, easy installations and secure connections with new hardware included.
- Group GC2 – AGM upgrade for Trojan T-105 & T-125 batteries, plus many others. Cross-Reference
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
Note: The XTR6-235M has M8 threaded insert terminals only. These do NOT have automotive posts. For the Dual Terminal 48V GC2 Package, click the link.
Why Choose VMAX Xtreme Equipment Batteries?
VMAX Xtreme Series batteries are engineered to outperform standard batteries with premium materials and advanced manufacturing techniques that result in superior deep cycle performance and longevity. These AGM batteries provide equipment owners with maintenance-free convenience, high starting power, and the reliability needed for daily use on long shifts. Customers trust VMAX for their proven track record in delivering high-capacity, durable batteries that withstand vibrations, temperature extremes, and heavy use. Choosing VMAX means investing in batteries designed to maximize your equipment's uptime while minimizing maintenance and replacement costs over time. Experience the Xtreme difference with batteries built for strong performance and lasting value.
| Voltage | 6V |
| Capacity | 235Ah |
| Group Size | GC2 |
| Type | Deep Cycle AGM |
| Cold Cranking Amps |
1,100A |
| Length | 10.24" (260 mm) |
| Width | 7.10" (180 mm) |
| Height | 10.35" (263 mm) 11.00" (279 mm) w/terminals |
| Terminals | M8 Inserts (hardware incl.) |
| Weight | 78 lbs (35.4 kg) |
| Charging Current | 15 - 65 Amps |
| Charging Voltage | 7.2V - 7.35V |
| Float Voltage | 6.8V - 6.9V |
| Float Service Life | 10 - 12 Years |
| Warranty | 1 Year |
VMAX XTR6-235M Battery Cross-Reference
6 Volt Group GC2 Batteries: 6CRV220, 8AGC2, 8GGC2, 8143, 8144, 8146, CBEV-GC2-DT, CR-205, CR-235, CR-240, CR-245, DC224-6, DC250-6, EGC2, EV125, G110-12, GC-100, GC-110, GC10, GC100, GC110, GC110DT, GC115, GC15, GC2, GC2-110, GC2-6V, GC2-6V-HD, GC2-6V-XHD, GC2-ECL-S, GC2-ECL-UT, GC2-ECL-UTL, GC2-GOLF, GC2-HCL-UT, GC2-HCL-UTL, GC2-HD-AGM, GC2HC-UTL, GC2200P, GC25, GC45, HPGC, LDC6-210-GC2, M-GC2-UTL, PF-GC2-UTL, SLIGC110, SLIGC115, SLIGC125, SLIGC145UT, SLIGC2-105, SLIGC6VAGM, T-105, T105+, T-125, T-125+, T-605, US2200 XC2, V6-225, XTR6-235, XTR6-235M.
6 Volt Group GC2 Batteries w/Studs or Insert Terminals Only: SLIGC2-105, T-105, T105+, T-125, T-125+, US2200 XC2, V6-225, XTR6-235M.
The XTR6-235 is the same battery, but with the addition of automotive post terminals.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
