Product Description

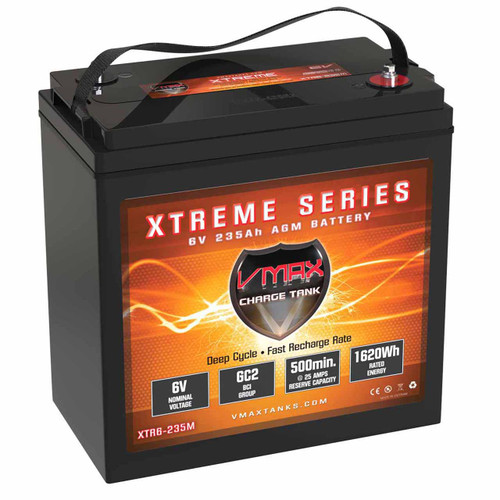

Group GC2 6V Floor Machine Battery
The VMAX XTR6-235M Floor Scrubber & Sweeper Battery pairs high-load capability with true AGM deep-cycle performance. With 235Ah capacity, it delivers dependable power and extended runtime for commercial floor-cleaning equipment that use GC2 batteries. Engineered for tough daily use, this sealed, maintenance-free battery provides consistent power, fast recovery, and rugged durability. Your scrubbers, sweepers, burnishers, and carpet extractors stay productive longer, with fewer interruptions and lower upkeep costs.
Features & Benefits
- Xtreme Series AGM Design – Heavy-duty plates deliver exceptional durability and high charge cycles.
- Sealed Design – Eliminates watering and acid spills for safer, hassle-free operation in busy facilities.
- Group GC2 – Direct-fit replacement for many floor scrubbers, sweepers, burnishers and carpet extractors.
- 235Ah Deep-Cycle Capacity – Extended runtime to complete more work between charges.
- Fast Recharge Capability – Accepts high charge rates for quicker turnaround between uses.
- Low Self-Discharge – Maintains a charge longer between uses than flooded batteries.
- Temperature Tolerant – Maintains dependable power in both high and low temperatures.
- M8 Terminals – Versatile, easy installations and secure connections with new hardware included.
- GC2 Replacement – AGM upgrade for Trojan T-105, T-125, plus many others. Cross-Reference
- Built for Commercial Use – VMAX takes pride in building Tough Batteries for Tough Applications.
Note: The XTR6-235M has M8 bolt terminals only. If you would prefer the dual-terminal version with studs and automotive posts, check out the XTR6-235.
Why Choose VMAX Xtreme Floor Cleaning Batteries?
VMAX Xtreme Series batteries are engineered to outperform standard batteries with premium materials and advanced manufacturing techniques that result in superior deep cycle performance and longevity. These AGM batteries provide equipment owners with maintenance-free convenience, high starting power, and the reliability needed for daily use on long shifts. Customers trust VMAX for their proven track record in delivering high-capacity, durable batteries that withstand vibrations, temperature extremes, and heavy use. Choosing VMAX means investing in batteries designed to maximize your equipment's uptime while minimizing maintenance and replacement costs over time. Experience the Xtreme difference with batteries built for strong performance and lasting value.
Bulk Pricing on VMAX XTR6-235M Batteries
2-3 — $8.00 Off Each
4-8 — $15.00 Off Each
9+ — $22.00 Off Each
Automatically calculated in Shopping Cart
| Nominal Voltage | 6 Volts |
| Capacity | 235Ah |
| Type | Dual Purpose AGM |
| Cold Cranking Amps (CCA) |
1100 Amps |
| Marine Cranking Amps (MCA) |
1375 Amps |
| Group Size | GC2 |
| Length | 10.24" (260 mm) |
| Width | 7.10" (180 mm) |
| Height | 10.35" (263 mm) 11.00" (279 mm) w/terminals |
| Terminals | M8 Inserts (hardware incl.) |
| Weight | 78 lbs (35.4 kg) |
| Charging Current | 15 - 65 Amps |
| Charging Voltage | 7.2V - 7.35V |
| Float Voltage | 6.8V - 6.9V |
| Warranty | 1 Year |
Similar Batteries
View 6V Floor Cleaner Batteries in Other Group Sizes
Compare Other Group GC2 Batteries
VMAX XTR6-235M Battery Cross-Reference
6 Volt Group GC2 Batteries: 0400067, 0400215, 6CRV220, 70013987, 76502 (GT/GN), 8AGC2, 8GGC2, 8143, 8144, 8146, CBEV-GC2-DT, CR-205, CR-220, CR-235, CR-240, CR-245, DC224-6, DC250-6, E3600, EGC2, EV125, G110-12, GC-100, GC-110, GC10, GC100, GC110, GC110DT, GC115, GC15, GC2, GC2-110, GC2-6V, GC2-6V-HD, GC2-6V-XHD, GC2-ECL-S, GC2-ECL-UT, GC2-ECL-UTL, GC2-GOLF, GC2-HCL-UT, GC2-HCL-UTL, GC2-HD-AGM, GC2HC-UTL, GC2200P, GC25, GC45, GN1299390GT, GN76502, HPGC, LDC6-210-GC2, M-GC2-UTL, PF-GC2-UTL, SLIGC110, SLIGC115, SLIGC125, SLIGC145UT, SLIGC2-105, SLIGC6VAGM, T-105, T105+, T-125, T-125+, T-605, UP015796-000, US 125 XC2, US 145 XC2, US 1800 XC2, US 2000 XC2, US 2200 XC2, US AGM 2000, US AGM 2224, US AGM 6V260, V6-225, XTR6-235, XTR6-235M.
6 Volt Group GC2 Batteries w/Studs or Insert Terminals Only: 0400215, 70013987, GN1299390GT, GN76502, SLIGC2-105, T-105, T105+, T-125, T-125+, US 125 XC2, US 145 XC2, UP015796-000, US 1800 XC2, US 2000 XC2, US2200 XC2, US AGM 2224, V6-225, XTR6-235M.
The XTR6-235 is the same battery, but with the addition of automotive post terminals.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
