Product Description

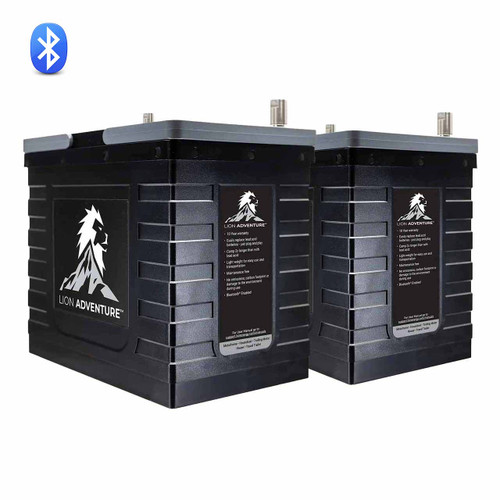

24V Trolling Motor Battery Set
The Lion Adventure BT 12V 100Ah LiFePO4 batteries from Lion Energy are the latest in lithium Bluetooth battery technology, engineered as superior replacements for traditional deep cycle batteries. These powerful lithium batteries designed to deliver reliable energy for 24V trolling motors or other low to moderate amperage 24 volt systems. With the ability to be fully drained and recharged over 3,500 times, zero maintenance requirements, 100A continuous output, and a lightweight 23 pounds each design, the Lion Adventure BT ensures consistent, hassle-free power day in and day out. Compact dimensions make installation simple while the 10-year warranty gives you complete confidence.
Features & Benefits
- 100Ah Capacity – 2,560Wh of total energy for long fishing trips or off-grid RV adventures.
- LiFePO4 Battery Chemistry – Uses lithium iron phosphate for long service life and lasting performance.
- Bluetooth Monitoring – Check battery status from your phone for convenient system monitoring.
- High Output – Provides 100A continuous output for high auxiliary loads and inverter systems.
- Group 24 – Direct-fit replacement for many 24V marine, RV, and commercial equipment applications.
- High Cycle Life – Rated for 3,500+ cycles at 100% depth of discharge for incredible long-term value.
- Expandable Design – Configure in series or parallel for large battery banks or higher voltage systems.
Why Choose Lion Adventure BT?
The Lion Adventure BT is engineered with premium LiFePO4 cells that enable it to outperform heavy lead-acid batteries in every way — lighter weight, faster charging, deeper usable capacity, and dramatically longer life backed by a full 10-year warranty. Whether you’re powering weekend RV trips, marine electronics, or a power chair, this battery eliminates maintenance headaches and delivers consistent power when you need it most. Series or parallel configurations let you scale capacity as your needs grow, while the rugged design handles real-world use and conditions. Lion Energy’s commitment to innovation means you get cutting-edge technology at a fair price, giving you peace of mind and freeing you to explore further, longer, and with total confidence year after year.
Lion Energy Smart App
- Monitor your battery status from your phone.
- See current capacity levels as well as real time incoming and outgoing energy usage.
| Voltage | 12.8 Volts |
| Capacity | 100Ah / 1280Wh |
| Type | Lithium (LiFePO4) |
| Max. Discharge | 100 Amps |
| Group Size | 24 |
| Length | 10.20" (259 mm) |
| Width | 6.60" (168 mm) |
| Height | 8.80" (224 mm) 9.80" (249 mm) w/terminals |
| Terminals | M6 Inserts |
| Polarity | - Left / + Right |
| Weight | 23.0 lbs |
| Charging Current | 45A Recommended 95A Max |
| Max Charging Voltage | 14.6V |
| Low Voltage Cut-Off | 10 Volts |
| Operating Temperature | -4°F - 131°F |
| Charging Temperature | 32°F - 113°F |
| Series Connections | Up to 4 (48V) |
| Parallel Connections | Up to 4 (400Ah) |
| Design Life | 3,500+ cycles @ 100% DOD |
| Warranty | 10 Years |
| Part Number | 50170210 |
Lion Energy Adventure BT Manual
Lion Energy Adventure BT Datasheet
Lion Adventure BT Battery Cross-Reference
Group 24 Batteries w/Studs or Insert Terminals: 24DC-1, 24DC-2, 24M5, 24TMX-WNT, 8A24M, 8G24M, CBEV-24-M8, CT2000, DURA12-80C/FR, LFP1280A (AGM), LFP1280D (AGM), M24-3, MB107-85, MR107-85, PDC-12800 M6, PS-12750 M6, SLA12-80P, SLI24MAGMDC, SLR85, UB12750.
Group 24 Batteries w/Nut & Bolt Terminals: 24TMX-UT, 45821, DC12-80P, DCM0012-80, DURDC12-80P, ES12-80P, GP12800P, LC-XD1280P, LFP1280D (AGM), ML80-12P, NP80-12P, PDC-12800 U, PE12V80P, PK12800P, PS-12750 U, SCP12750 NB, SP12-75, UB12750, UB12800P, WKDC12-80P.
Group 24 12V Lithium Batteries: 50170143, 50170173, 50170210, ADVENTURE-BT, DL12-60, DL12-100, LFP1280MH, PP12-100, SLIL24-100DCM, UT 1300 BT, UT 1300 BT-H.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
Warning: LiFePO4 charger required if upgrading from non-lithium batteries.
