Product Description

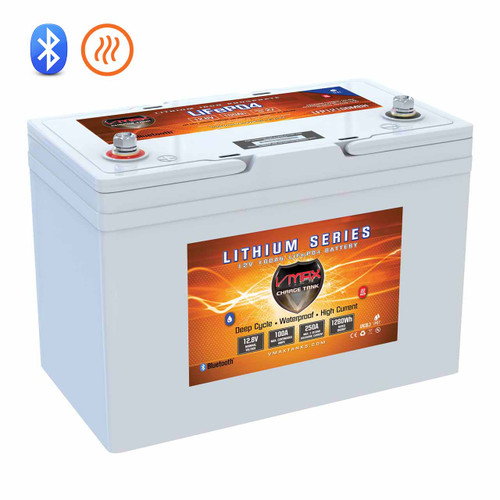

VMAX Heated LiFePO4 Battery with Bluetooth
The VMAX LFP12100MBH is a 12V 100Ah lithium deep cycle battery with Bluetooth that's engineered for marine, RV, off-grid solar, and energy-storage systems that require high capacity and dependable power. Designed with an internal self-heating system for safe cold weather charging, plus a built-in Battery Management System (BMS) for protection and long service life. Integrated Bluetooth battery monitoring and a light 25 pound design makes it a perfect drop-in lithium upgrade over heavier AGM or flooded Group 27 batteries. IP67 waterproof rating, fast charging, and long cycle life make this a user friendly and versatile lithium upgrade.
Features & Benefits
- Bluetooth – Realtime monitoring of battery performance in the VMAX App.
- Self-Heating – Enables safe charging below 32°F (0°C) for year-round use.
- 100Ah Capacity – Long run times for trolling motors, RV house loads and off-grid systems.
- Built-In BMS Protection – Over/under-voltage, over-current, short-circuit and temperature protections.
- Light Weight – Easier handling and drop-in replacement for many Group 27 applications.
- Fast, Efficient Charging – Optimized for LiFePO4 smart chargers and solar charge controllers.
- High Discharge Capability – Supports inverters and DC loads up to 100 continuous amps.
- Scalable System Design – Wire up to 4 in series (24/36/48V) or 4 in parallel (up to 400Ah).
- 7 Year Warranty – Backed by VMAX's industry leading customer service.
Why Choose VMAX Lithium Batteries?
The VMAX LFP series pairs high-grade LiFePO4 cells with an advanced Battery Management System (BMS) to deliver stable, maintenance-free deep-cycle power—year after year. Their integrated self-heating system maintains a charge acceptable internal temperature in freezing conditions, making winter operation practical for RVs, boaters, and off-grid users. The standardized group sizes and M8 terminals simplify drop-in lithium upgrades where AGM or flooded batteries were previously used. With fast charging, high discharge capability and support for series & parallel banks, they scale easily from a single house battery to multi-battery energy storage banks. Backed by a 7-Year Warranty and a 10-year design life for reliable power and excellent long-term value.
VMAX Bluetooth Battery Monitoring
View real-time battery status, performance, and enable custom alerts to be notified when your specified conditions are exceeded.
Quickly and Easily Check:
- Voltage
- Amperage In/Out
- Estimated Time to Full Charge at Current Charge Rate
- Cell Balancing Monitor
- Temperature
- Battery Status
- Battery Cycles
VMAX App Downloads
| Type | Lithium (LiFePO4) |
| Voltage | 12.8 Volts |
| Capacity | 100Ah / 1280Wh |
| Maximum Continuous Discharge |
100 Amps |
| Group Size | 27 |
| Length | 12.08" (30.7 cm) |
| Width | 6.61" (16.8 cm) |
| Height | 8.35" (21.2 cm) |
| Weight | 25.0 lbs (11.3 kg) |
| Terminals | M8 Inserts (hardware included) |
| Polarity | + Left / - Right |
| Charging Current |
10 - 50A |
| Charging Voltage |
14.4 - 14.6V |
| Low Voltage Cut-Off |
10.0V |
| Operating Temperature |
-4°F - 150°F (-20°C - 66°C) |
| Heater On (Powered By Charger) |
32°F (0°C) |
| Design Life | ~10 Years |
| Warranty | 7 Years |
VMAX LFP12100MBH Group 27 Cross-Reference
Group 27 Batteries Lead-Acid Batteries: 27DC, 27DC-DL, 27M-DP, 8027-127, 8A27M, 8G27M, CT2400, DURA12-100C/FR, DURHR12-370C/FR-A, M27, M-27DC, MB127-100, MR127-100, PDC-121000 M6, PDC-121050 M6, PS121000 M6, SLI27AGMDPM, SLI27MAGMDC, SLI27MDC, SLI27MDP, SLR100, XCA27-1200, XTR27-110, UB121000.
Group 27 12V Lithium Batteries: BB10012, BB10012H, BB10012i, BB10012iH, LFP12100MBH, SLIL27-100DCM.
Important: Always confirm your battery's dimensions, terminal configuration, and specifications before purchase to ensure proper fit and performance.
Warning: LiFePO4 charger required if upgrading from non-lithium batteries.
Recommended Chargers for the LFP12100MBH
Applications
- Marine: Trolling Motors, House Power, Fish Finders
- RV & Camper Vans: House Batteries, Inverters, 12V Appliances
- Off-Grid Solar & ESS: Solar Battery Banks, Hybrid Inverters, Cabin Power Systems
- Backup Power & UPS: Battery Backup Units, Telecom/Networking UPS, Inverter Systems
- Deep-Cycle Only – Not for engine starting applications
